• Crosstrail SL Carbon 29 Disc Centre Lock

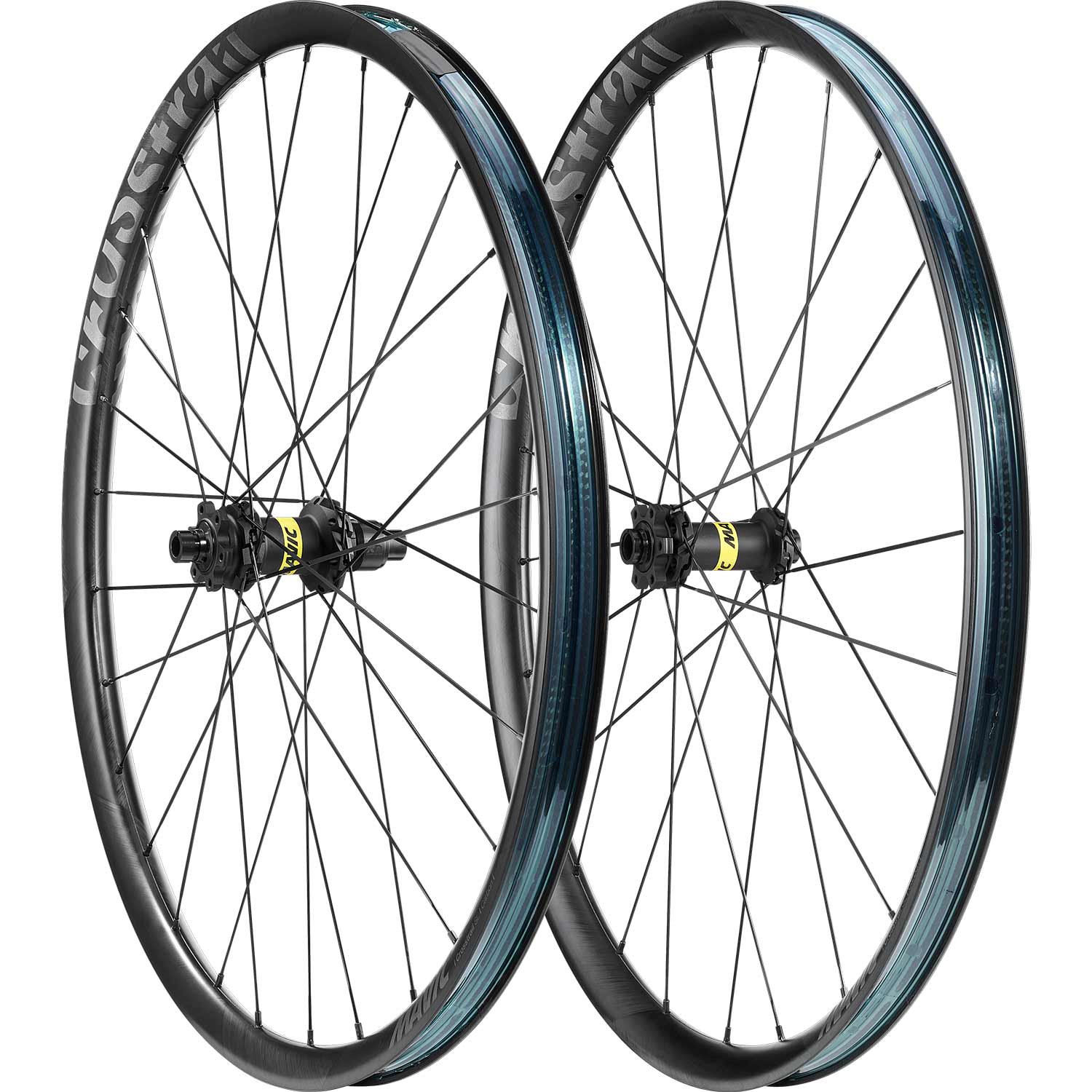

Ultra-strong, agile and lightweight, this Crosstrail sl carbon combines the best of mavic's technologies, making it your best companion to tackle any trail.

Ultra Robustr

• Its new lower profile and UD2 carbon construction make it the strongest carbon trail wheel in its segment

The lightest e-bike wheel

• The use of carbon fibre gives it a record weight, making it the lightest in its segment

Improved responsiveness

• The reduced inertia of the rim combined with INFINITY hub technology means instant acceleration

Weight

• Pair: 1690g
• Rear: 935g
• Front: 745g

Understanding the different Mavic freehub body acronyms:

• HG or M11 - Shimano HG Road 11/12x (other speeds with spacer)
• MS - Shimano Microspline
• XD - SRAM XD
• XD-R - SRAM XD-R
• ED11 - Campagnolo 9/12x
• N3W - Campagnolo 13x

  ---

ADDITIONAL INFORMATION

Instant Drive 360 technology

Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

UST tubeless technology

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

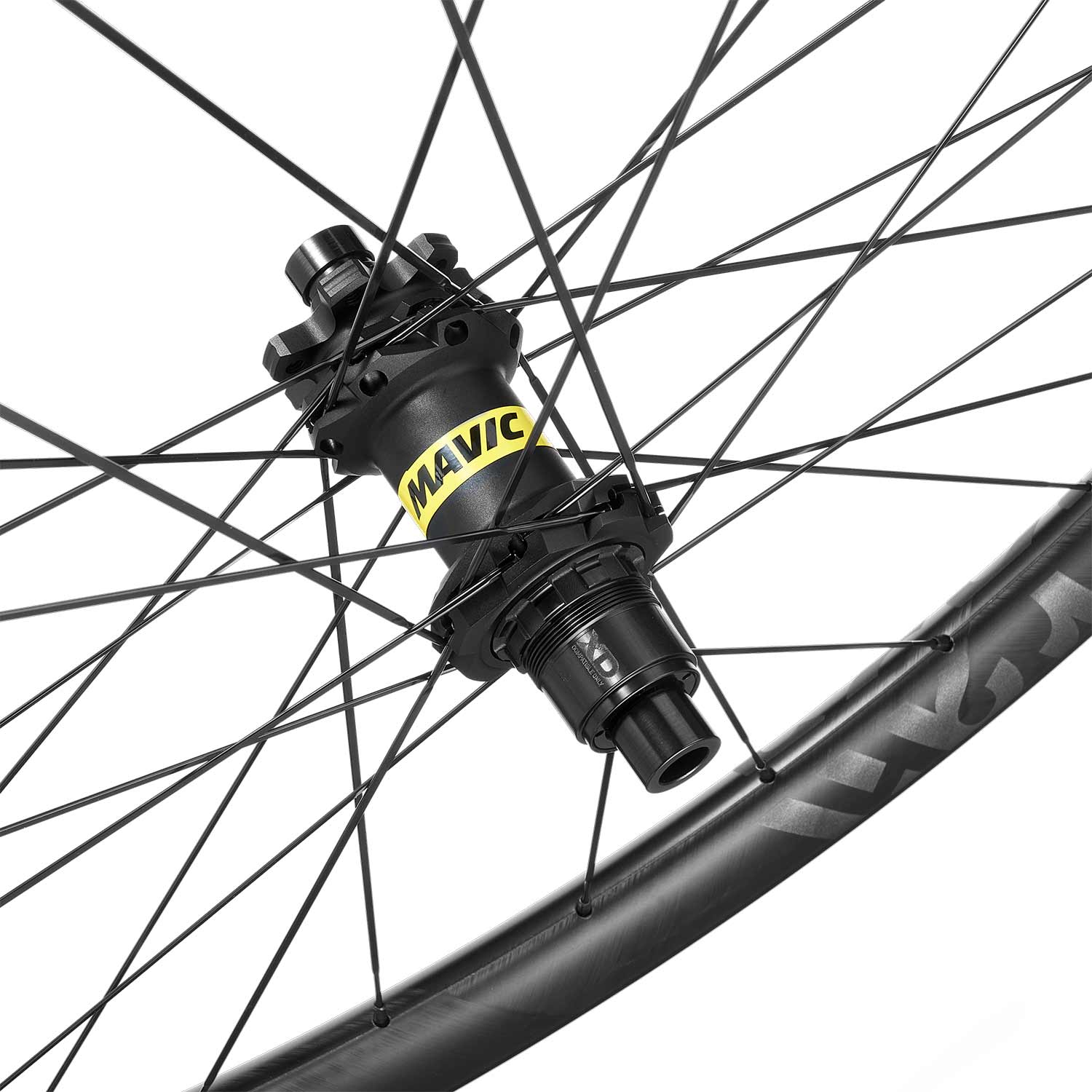

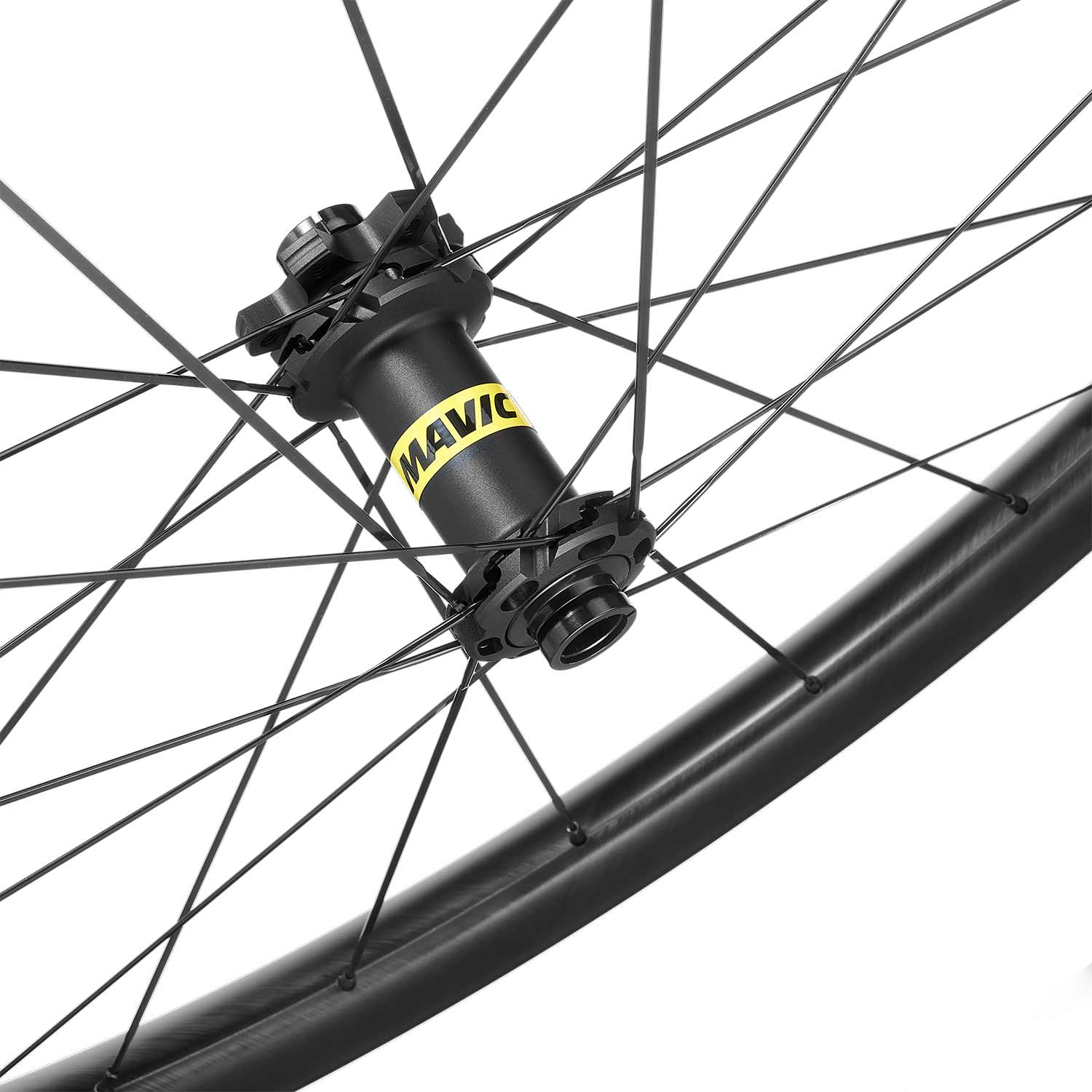

Infinity hub design

Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.

QRM Auto Bearing Preload Technology

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

Technical Specifications:

• Profile depth: 25mm
• Inner width: 30mm
• Front axle: 15x110mm
• Rear axle: 12x148mm
• Discipline: Downhill
• Drilling: Drilling: traditional (front 24 holes and rear 28 holes)
• Spokes: Straight Pull, Flat
• Rim Diameter: 29"
• Nipples: Brass, Black
• Rim material: 100% carbon fiber with UD external layer
• Tyre compatibility: UST Tubeless Ready Use with Mavic Tubeless Tape
• Maximum weight: 135kg including bike
• Braking system: Centre Lock
• Bearings: QRM automatic setting sealed cartridge
• ETRTO Size: 622x30TC
• Pair Weight: 1690g
• Front Weight: 745g
• Rear weight: 935g
