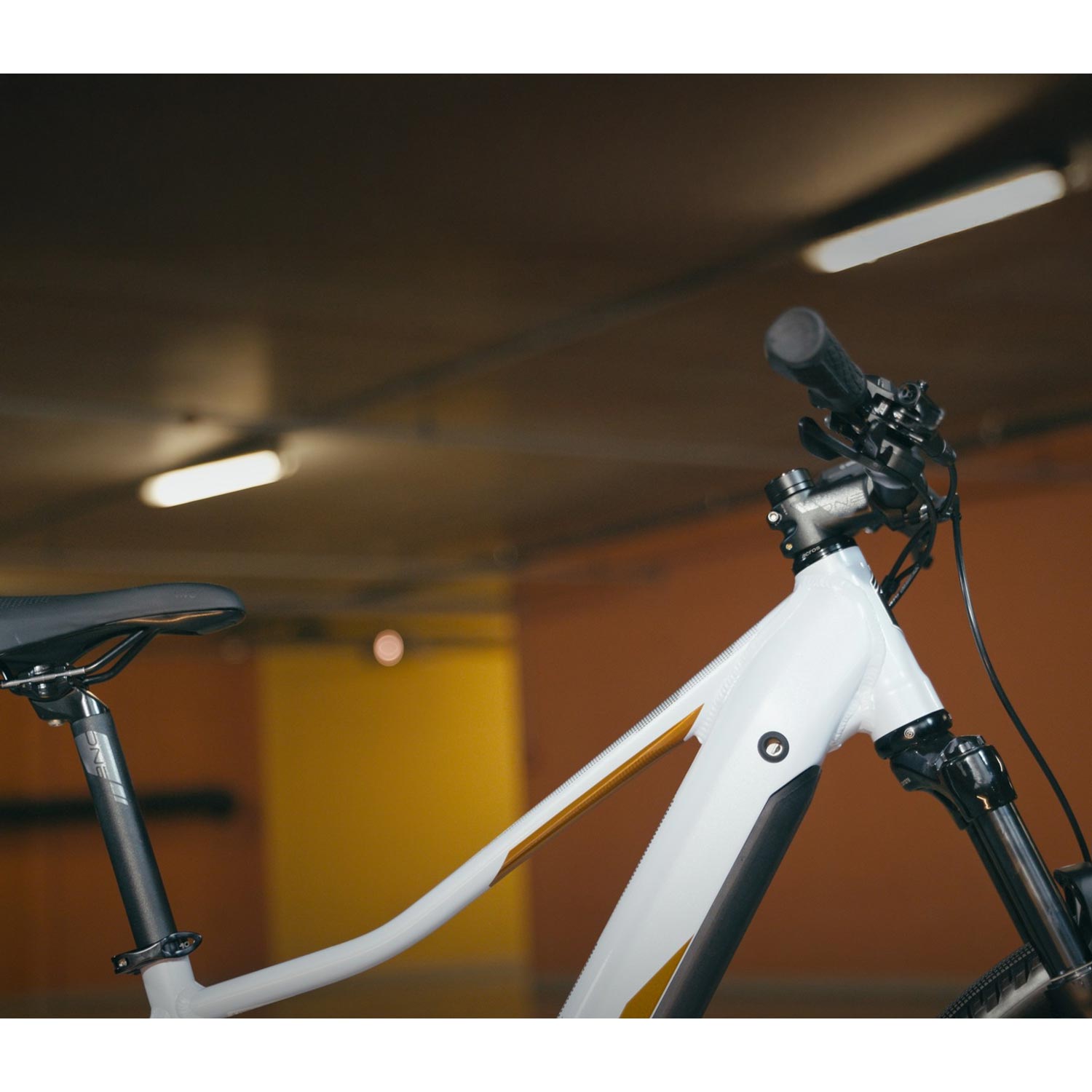

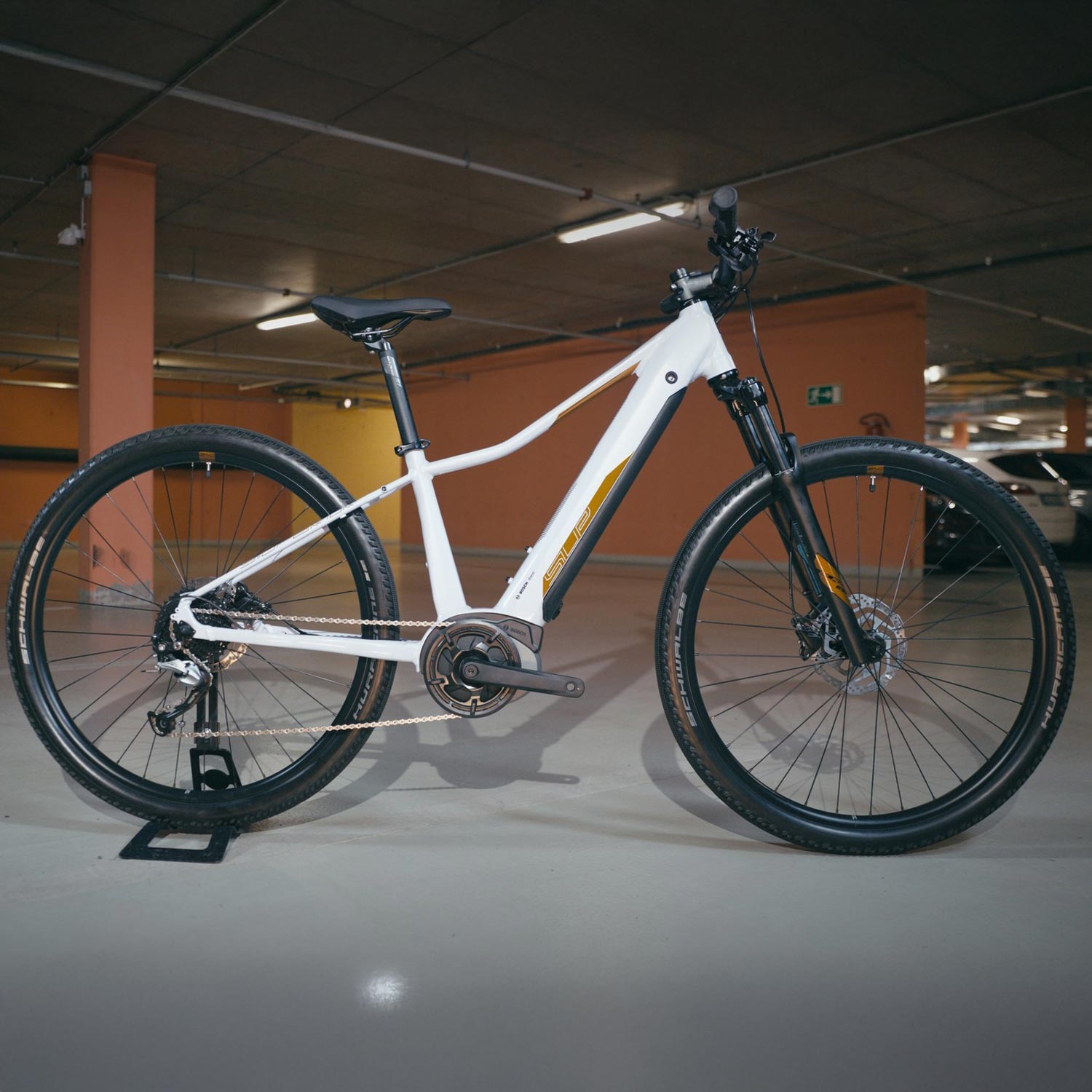

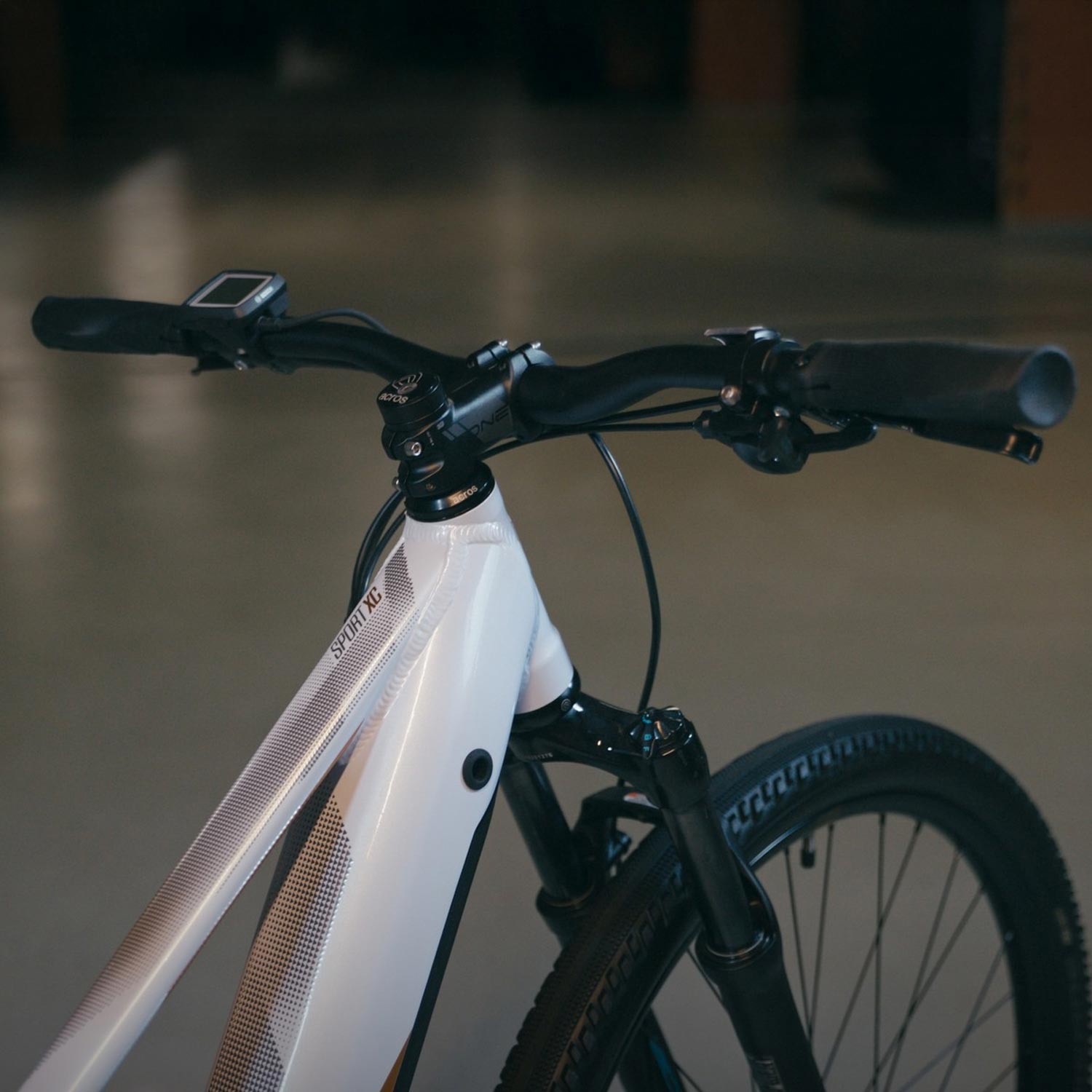

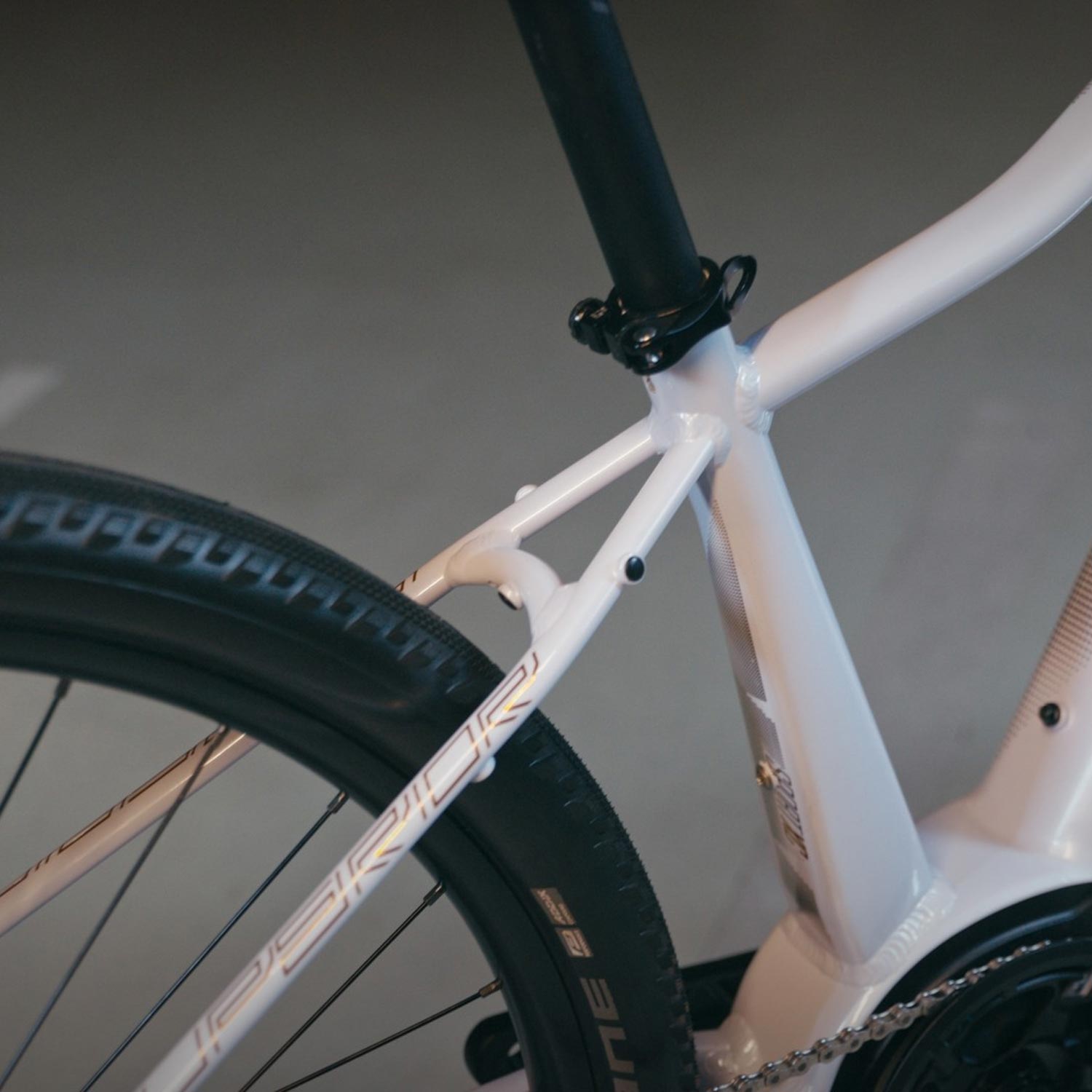

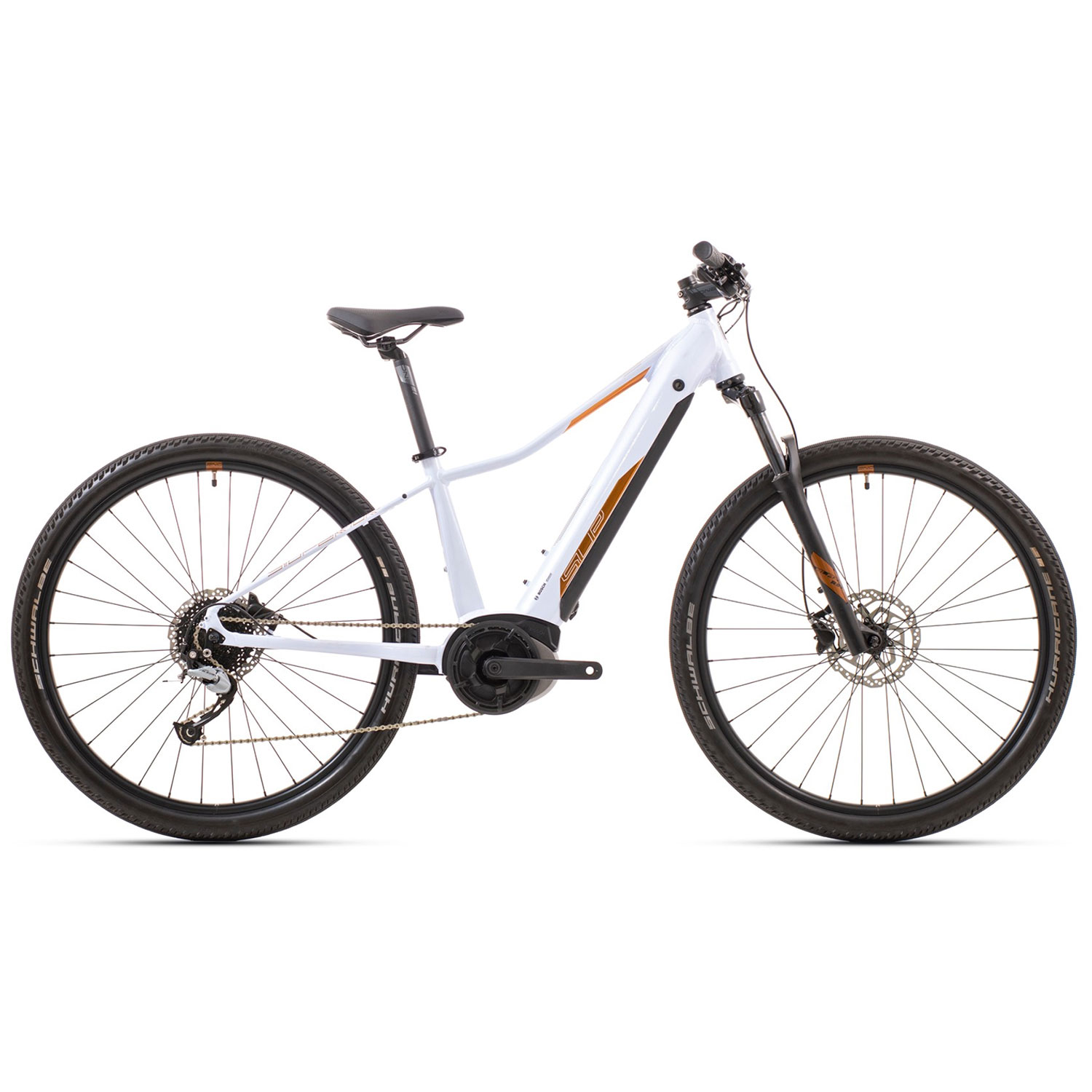

EXC 7019 WB MTB E-Bike

EXC 7019 WB MTB E-Bike

£3099.00 RRP

FIND A RETAILER

FREE UK mainland delivery

FAST dispatch, within 1 working day

Option to Click and Collect from your local retailer

DESCRIPTION DELIVERY & RETURNS REVIEWS SIZE GUIDE

DELIVERY & RETURNS REVIEWS SIZE GUIDE

Ladies' mountain E-bike with a Bosch Active Line Plus drive unit with 250W power, a maximum torque of 50Nm and a fully integrated battery with a capacity of 500Wh, which ensures a range of up to 100km on a single charge. We built the eXC on a comfortable double-butted aluminum alloy sports frame in a comfortable geometry for long days in the saddle. We chose the Shimano Alivio shifter for easy control and trouble-free functionality. The Suntour suspension fork takes care of comfort and the ONE components offer enough comfort and confidence when controlling the bike.

Features

Powerful Bosch Drive unit: Powered by the Bosch Performance Line with a power of up to 65 Nm. Thanks to this power no climb will be a problem for you. In addition, the drive unit is quiet so it won't disturb you at all when riding. The advantage of Bosch drive units is primarily their reliability which is unrivaled in this segment.
Up to 100 km on a single charge: Equipped with a fully integrated battery with a capacity of 500 Wh. Thanks to it, you can travel up to 100 km on a single charge which is enough for a decent ride. Although the battery is integrated, it is no problem to remove it from the bike.
RST Spring Fork: Suspension on this bike is provided by a RST spring fork which can deal with any uneven terrain and easily manages dirt roads and cobblestones. Thanks to its design, the fork is practically maintenance-free.
Shimano Alivio drivetrain: The range of gears is ideal for trips and even harder climbs won't be a problem for you. We also chose this mix of components with a long life and reliable functionality in mind.

Base Info

E-System: BOSCH ACTIVE LINE PLUS; Battery PowerTube 500Wh
Distance: 120km
Max Torque: 50Nm/270%
Support speed up to: 25km/h
Weight: 23.15kg

E-Bike Parts

Motor: BOSCH Active Line Plus, 50Nm
Charger: BOSCH 2A
Battery: BOSCH PowerTube, 500Wh
Display: BOSCH Purion

Frameset

Frame: Alu 6061 T6, Sport eMTB Geometry, Smooth Welding, Bosch system Powertube 625Wh battery ready, Inner Cable Routing
Suspension Fork: RST Blaze, 1-1/8", 100mm travel
Headset: ACROS AZX-254, ZS44/28.6 - EC49/30; BlockLock
Suspension Travel Front: 120mm

Drivetrain

Shifters: SHIMANO ALIVIO SL-M3100-R, RAPIDFIRE Plus, 9-speed
Rear Derailleur: SHIMANO ALIVIO RD-M3100, Shadow Design
Crankset: ONE Sport, Alloy
Chainring: ONE Sport, 38T
Cassette: SHIMANO CS-HG200, 9-speed, 11-36T
Chain:KMC e9S

Braking system

Brakes: SHIMANO MT200, hydraulic disc brake
Rotors: SHIMANO SM-RT10, 180mm

Wheels

Front Hub: SHIMANO HB-TX505, 32H, CL, M9X100mm, QR Type
Rear Hub: SHIMANO FH-TX505-8, 32H, CL, M10x135mm, QR Type
Rims: STARS J30D, Disc, 32H
Tyres: Schwalbe Hurricane Performance, 29x2.25, ADDIX
Spokes:SAPIM Galvanized Black, Brass Nipples

Cockpit

Stem: ONE Sport, Alloy, 31.8mm, -8 Degrees
Handlebar: ONE Alloy, 25mm rise, 31.8mm
Grips: ONE Sport Ergo, Lock-On

Parts

Saddle: Selle Royal Vivo
Seatpost: ONE Sport, Alloy, 30.9mm
Seatpost Clamp: ONE CC-617, 34.9mm, with Quick Release level, Black
Pedals: Marwi SP-610

Please Note: Bike Specification May Be Subject To Change Without Notice

webID: 16737

Delivery & Returns

Dispatch Times

All orders placed on our website are dispatched within 1 working day

FREE UK Mainland Delivery

Optional Click & Collect from our Network of Retailers in the UK & Ireland

This is a FREE service!
At checkout you can choose your nearest local retailer to collect your order from
When you choose to click and collect, you are supporting your local bike shop, as the retailer will receive the full profit on your order.
Click and Collect orders should be available for collection from the retailer within 1-2 working days
Please wait to hear from the retailer that your order is ready for collection before travelling
Not sure where your nearest retailer is? find them here

Returns

Item(s) must be returned unused and in its original condition and packaging within 28-days from the date of purchase. Please read our full returns policy here.
