The C116 chainrings are compatible with Shimano XTR cranksets (from 2003 to 2006).

These chainrings are the perfect replacement for the Shimano XTR M960 rings and are 25% lighter compared to the originals!

The special PCD, only used on the M960 crank bolt pattern makes it difficult to find a replacement if the original rings are worn.

For clean up-shifts 4 shift pins are attached to the inside of the 32t and 44t ring.

Produced in the France

Technical data:

• Compatibility: only XTR M960
• Material: aluminium 7075
• Number of teeth: 22-32-44 teeth
• PCD: 64mm, 102mm, 146mm
• Speed: 8, 9, 10x
• Colour: black, silver teeth

Individual Ring data:

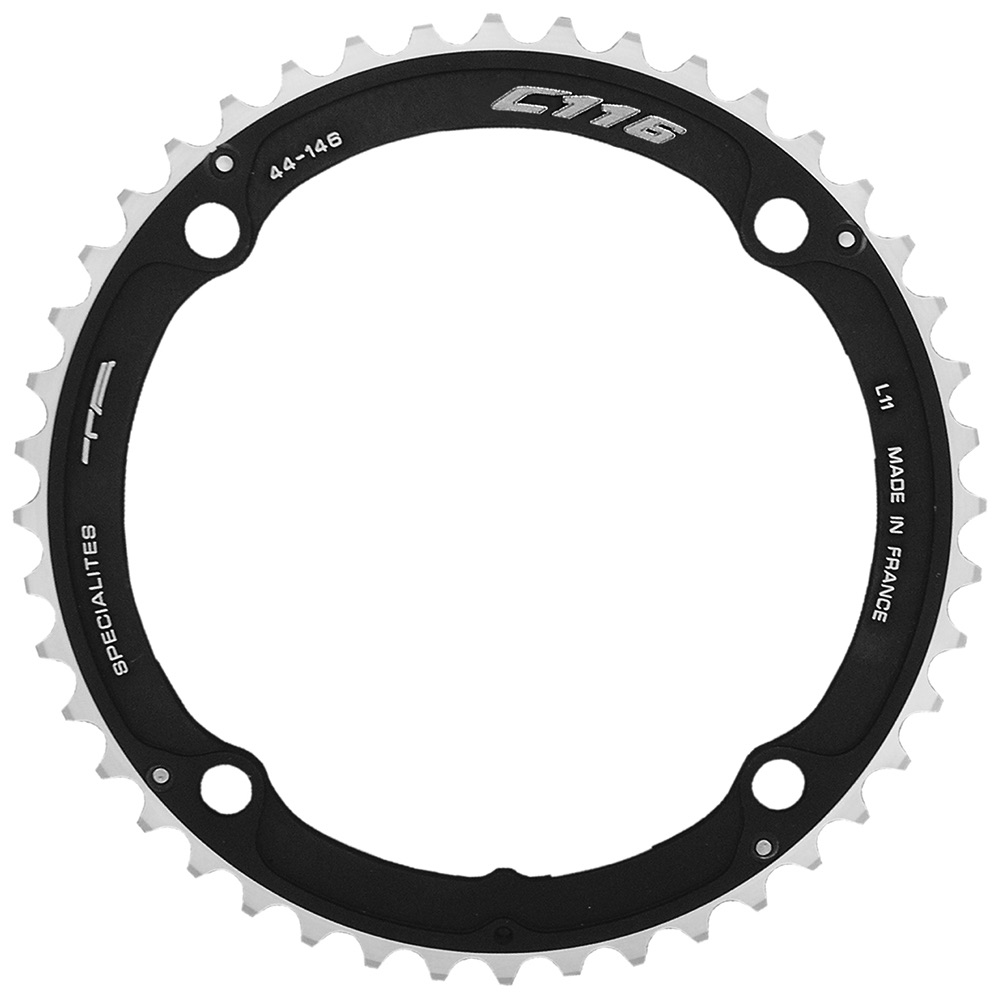

• 44t, PCD 146mm, 5mm thickness, 63g

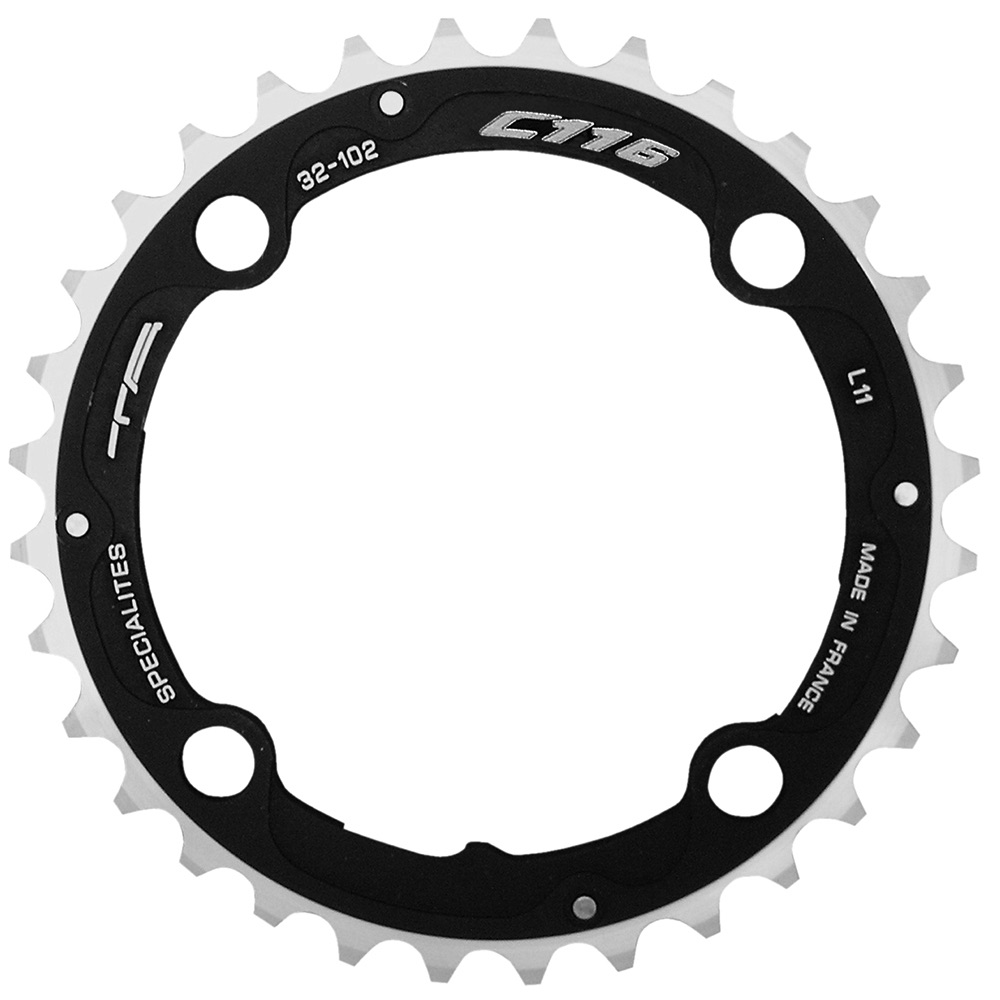

• 32t, PCD 102mm, 5mm thickness, 34g

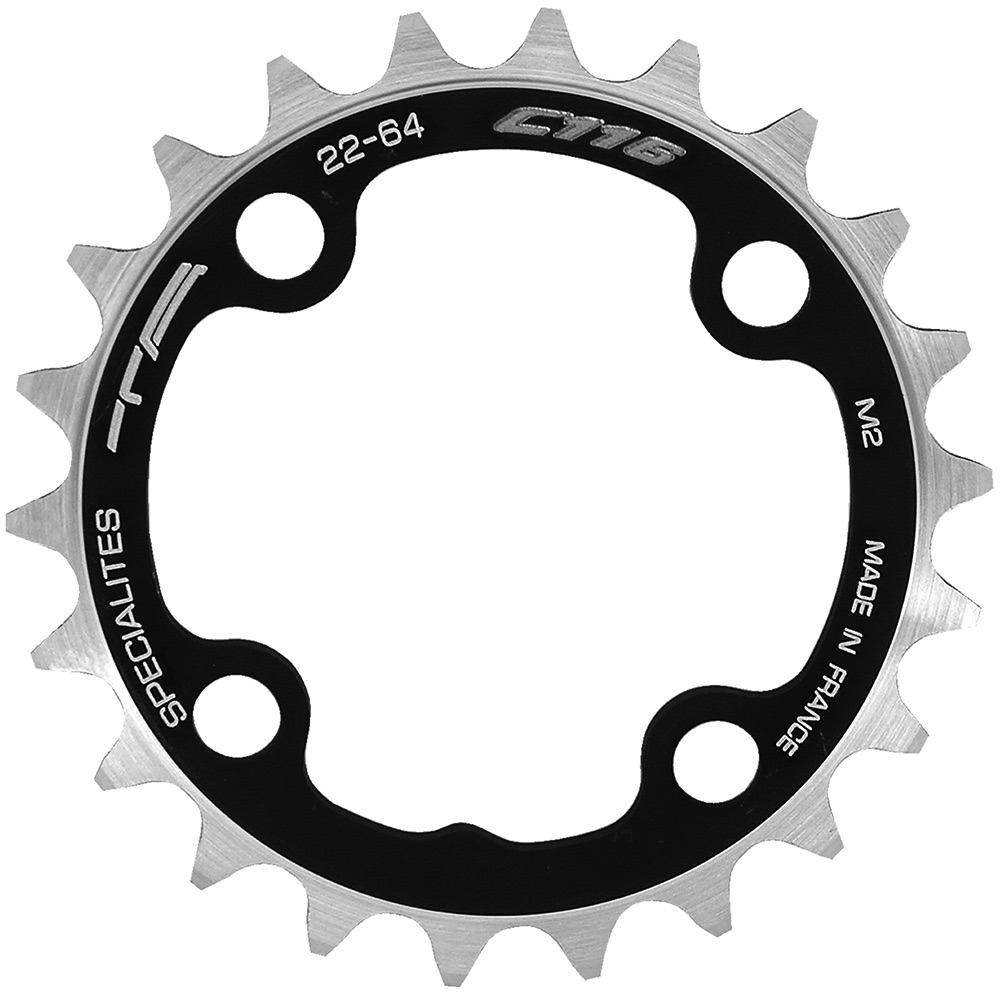

• 22t, PCD 64mm, 4mm thickness, 19g
