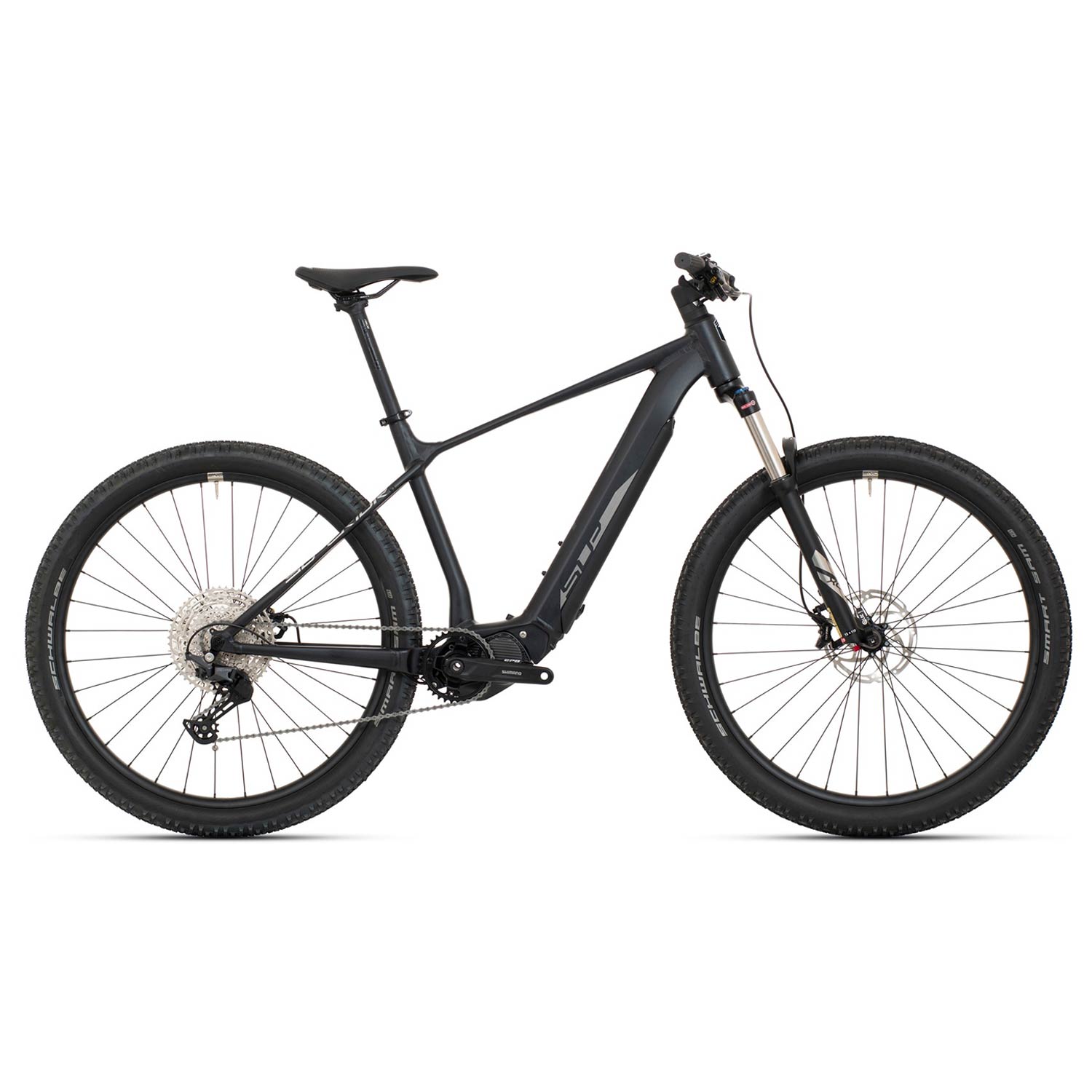

The Shimano EP8 drive unit is both powerful and quiet, offering a natural riding experience with significantly enhanced power. It features a 500 Wh battery that delivers up to 100 km of range on a single charge. Integration has been taken to the next level, with the battery, wiring, and cables seamlessly hidden in the cockpit. Equipped with Shimano Deore 1x11 gears, practical ONE accessories, and 2.6" wide tyres, it provides exceptional cross-country capability and comfort.

Features

• Frame with Fun Ride Geometry to increase Comfort&Control and to make uphills and downhills easier
• 625Wh Battery: Provides up to 150 km of range for extended rides.
• Shimano Deore 1x10, 38 x 11-46 for versatility on climbs and flat terrain.
• WTB "Freedom Dual" Tires: Durable with excellent grip for urban and off-road use.
• SR Suntour Epixon Air fork (120 mm): Absorbs shocks for a smoother, more comfortable ride.

Base Info

• E-System: SHIMANO STEPS EP8, Battery DARFON 504Wh
• Distance: 120km
• Max Torque: 85Nm / 340%
• Support speed up to: 25km/h
• Weight: 21.35kg

E-Bike Parts

• Motor: SHIMANO STEPS EP8, 85Nm
• Charger: DARFON 2A
• Battery: DARFON, 504Wh
• Display: SHIMANO SC-E5003

Frameset

• Frame: SU-E04-STEPS, Alu X6 Ultralite, Advanced eMTB Geometry, SHIMANO STEPS ready, Integrated battery, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready
• Suspension Fork: RockShox Judy Silver TK, Tapered, SoloAir, 15x110mm axle, 120mm travel
• Headset: ACROS AZX-1051, ICR, ZS56/28.6 - ZS56/40, BlockLock 120 degrees
• Rear Axle: SB01, TA12x171.5, M12xP1.5x15.5L, Black

Drivetrain

• Shifters: SHIMANO DEORE SL-M5100-IR, RAPIDFIRE Plus, 11-speed
• Rear Derailleur: SHIMANO DEORE RD-M5100, Shadow Plus Design
• Crankset: SHMANO FC-EM600
• Chainring: SHIMANO SM-CRE80, 34T
• Cassette: SHIMANO DEORE CS-M5100, 11-speed, 11-51T
• Chain: KMC e11T

Braking system

• Brakes: SHIMANO MT420, 4 piston, hydraulic disc brake
• Rotors: SHIMANO SM-RT30, 180mm

Wheels

• Front Hub: SHIMANO HB-MT410-B, 32H, CL, 15x110mm, THRU Type AXLE
• Rear Hub: SHIMANO FH-MT400-B, 32H, CL, 12x148mm, THRU Type AXLE
• Rims: STARS J30D, Disc, 32H
• Tyres: Schwalbe Smart Sam, KevlarGuard, 29x2.60
• Spokes: Sapim Leader, Stainless Black, SAPIM Brass Nipples

Cockpit

• Stem: ONE ICR, Alloy, 35mm, 0 Degrees
• Handlebar: ONE Alloy, 25mm rise, 31.8mm
• Grips: ONE Sport, Lock-On

Parts

• Saddle: Selle Royal Vivo
• Seatpost: ONE Race, Alloy, 30.9mm
• Seatpost Clamp: ONE CC-617, 34.9mm, with Quick Release level, Black

Please Note: Bike Specification May Be Subject To Change Without Notice
