• DCR Integrated Headset

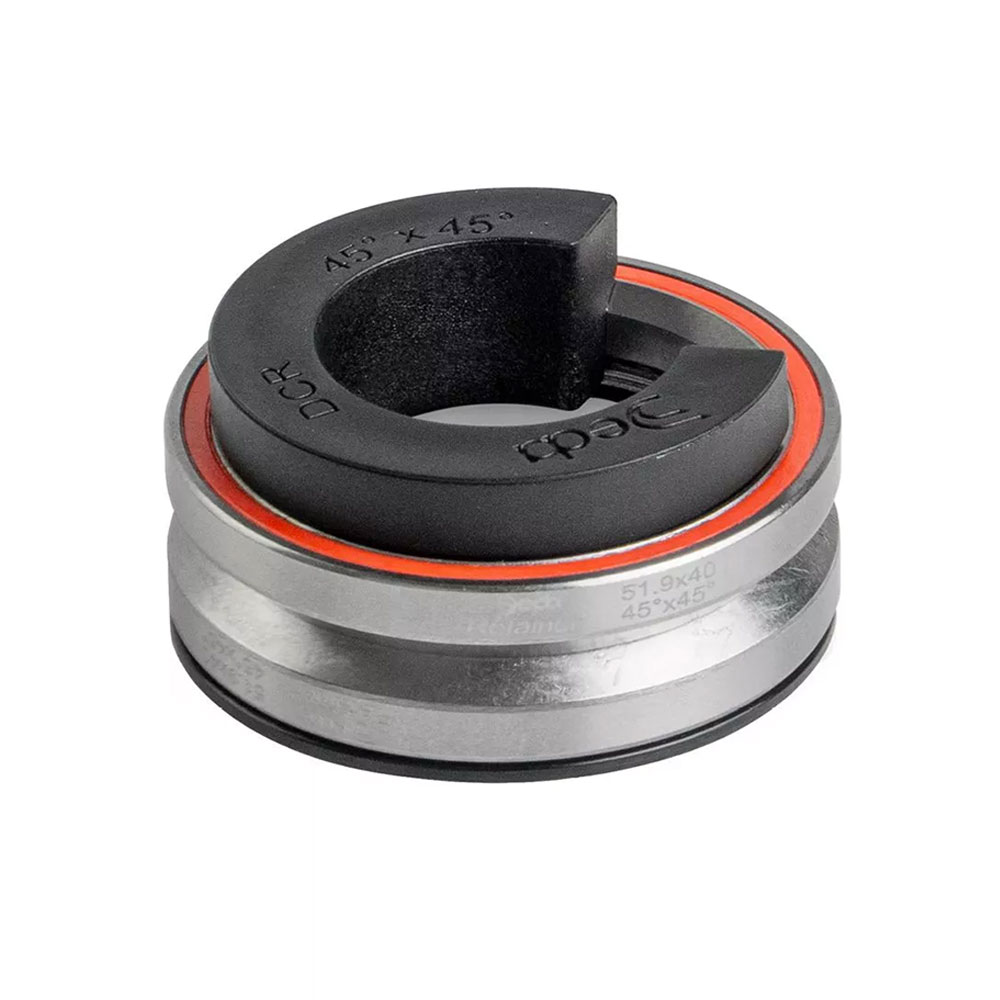

Integrated headset for DCR (Deda internal cable routing) system and compatible with Vinci, Alanera and Superbox stem.

It allows the full integration of the cables through the headset bearing. The DCR system works with a standard tapered fork steerer (1 1/8"� - 1.5"�), but requires a 52mm (1.5"�) upper headset bearing od.

The special compression ring design leaves room for the cables to fit the gap in between the headset bearing and the fork.

Tech Specs

• Headset Model: Integrated 1.5"-1.5"
• Bearings: Angular contact bearing chrome steel
• Headtube: 56mm
• Top Cover: 56mm
• Crown Race: 39.8mm Alloy
• Stack Height: 9.6mm
• Weight: 80g

Notes: compatible with 56mm Dia frame headtube designed for 1.5"� bearings (upper and lower). The DCR topcover for alanera is included with the handlebar kit.
