Ultra-strong, agile and lightweight, this Crosstrail sl carbon combines the best of mavic's technologies, making it your best companion to tackle any trail.

Ultra Robustr

Its new lower profile and UD2 carbon construction make it the strongest carbon trail wheel in its segment

The lightest e-bike wheel

The use of carbon fibre gives it a record weight, making it the lightest in its segment

Improved responsiveness

The reduced inertia of the rim combined with INFINITY hub technology means instant acceleration

Weight

Pair: 1690g
Rear: 935g
Front: 745g

Understanding the different Mavic freehub body acronyms:

HG or M11 - Shimano HG Road 11/12x (other speeds with spacer)
MS - Shimano Microspline
XD - SRAM XD
XD-R - SRAM XD-R
ED11 - Campagnolo 9/12x
N3W - Campagnolo 13x

ADDITIONAL INFORMATION

Instant Drive 360 technology

Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

UST tubeless technology

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

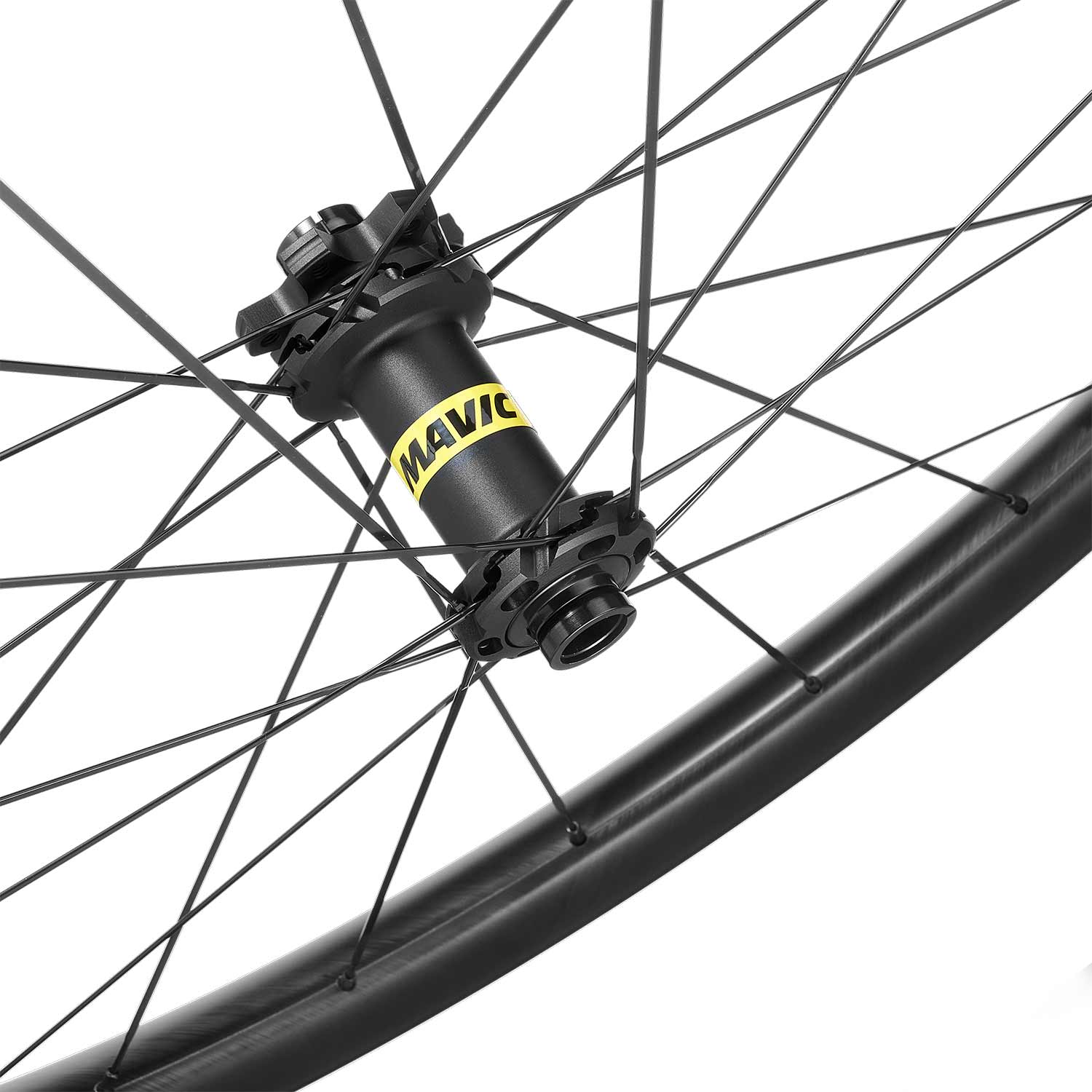

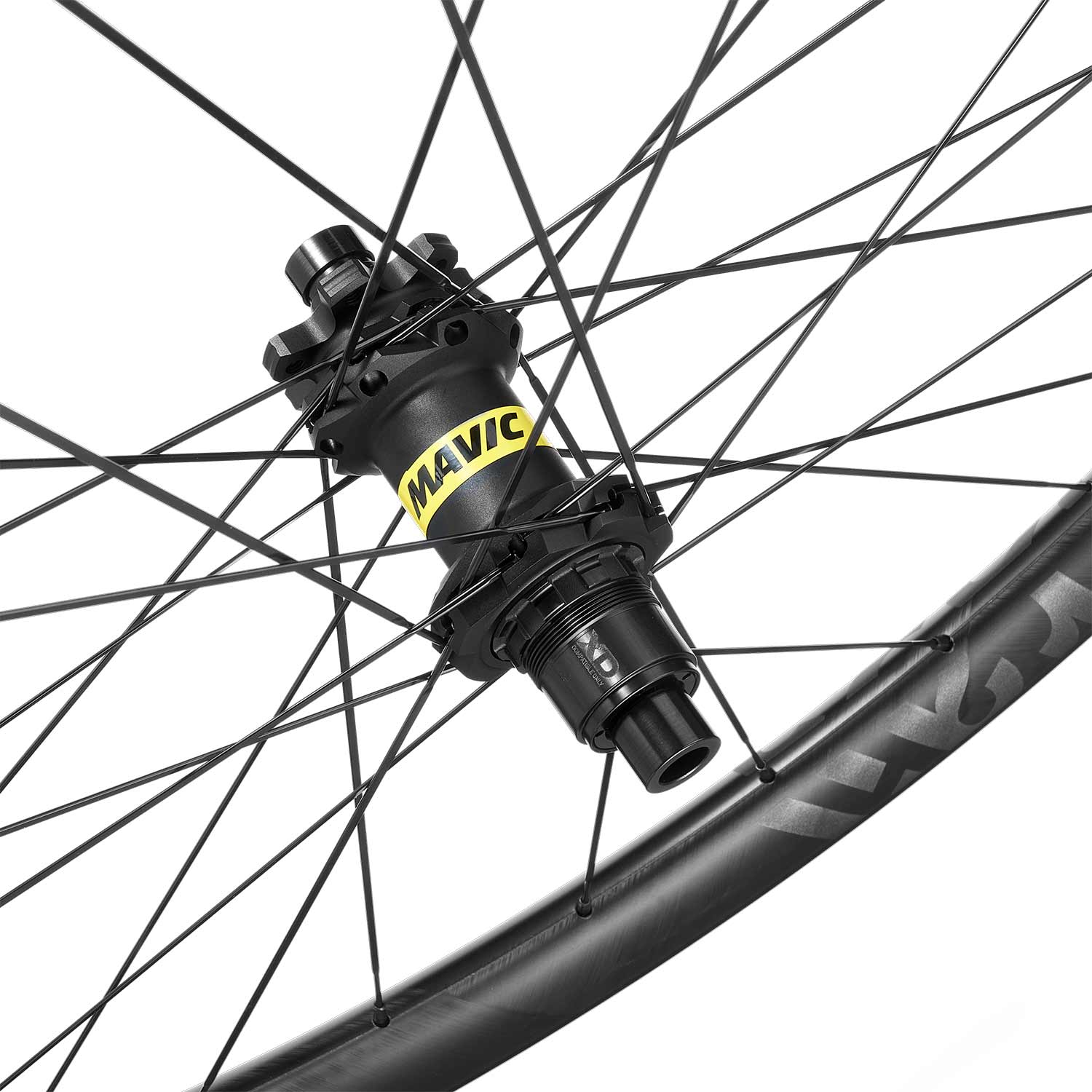

Infinity hub design

Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.

QRM Auto Bearing Preload Technology

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

Technical Specifications:

Profile depth: 25mm
Inner width: 30mm
Front axle: 15x110mm
Rear axle: 12x148mm
Discipline: Downhill
Drilling: Drilling: traditional (front 24 holes and rear 28 holes)
Spokes: Straight Pull, Flat
Rim Diameter: 29"
Nipples: Brass, Black
Rim material: 100% carbon fiber with UD external layer
Tyre compatibility: UST Tubeless Ready Use with Mavic Tubeless Tape
Maximum weight: 135kg including bike
Braking system: Bolt-Thru
Bearings: QRM automatic setting sealed cartridge
ETRTO Size: 622x30TC
Pair Weight: 1690g
Front Weight: 745g
Rear weight: 935g

webID: 16198
