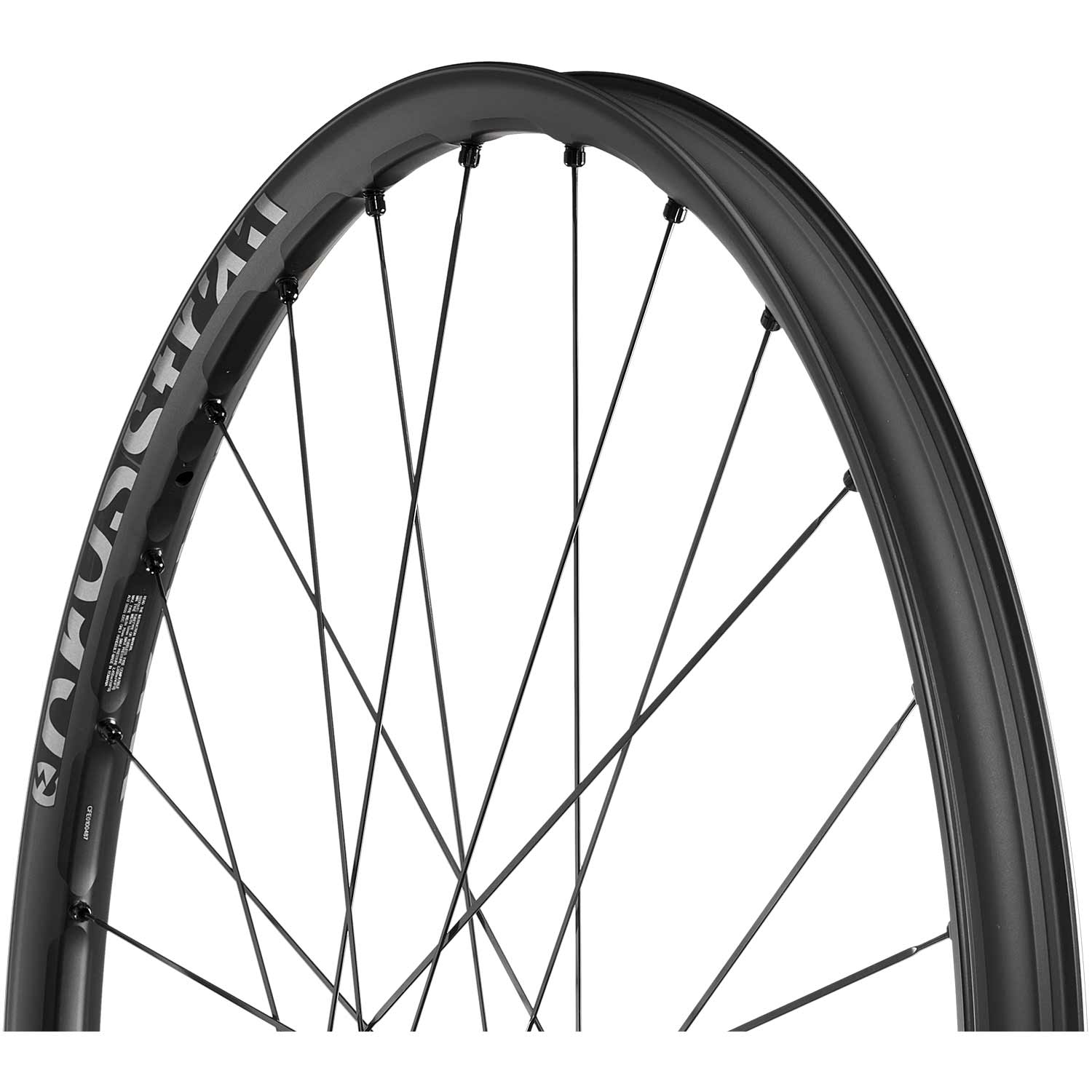

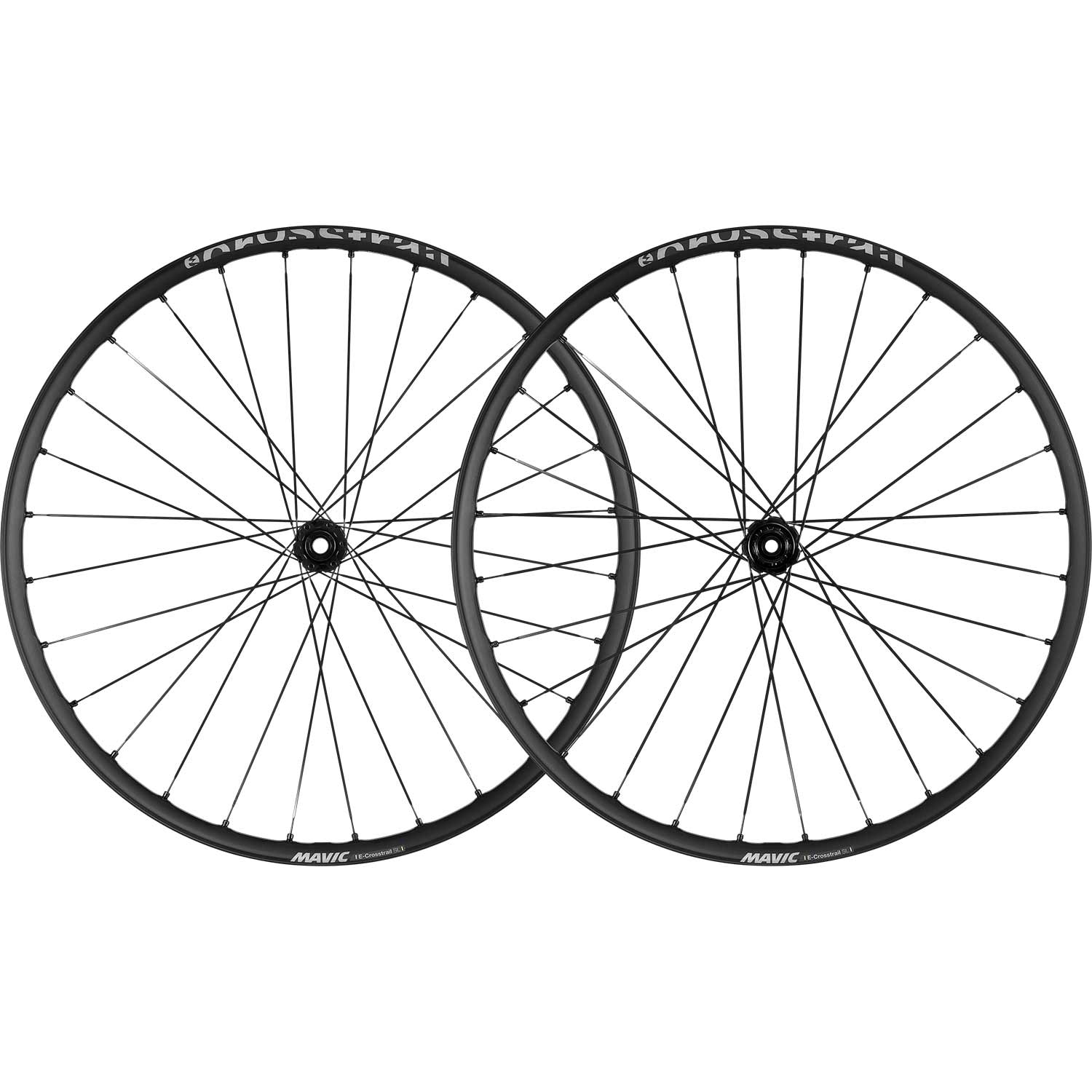

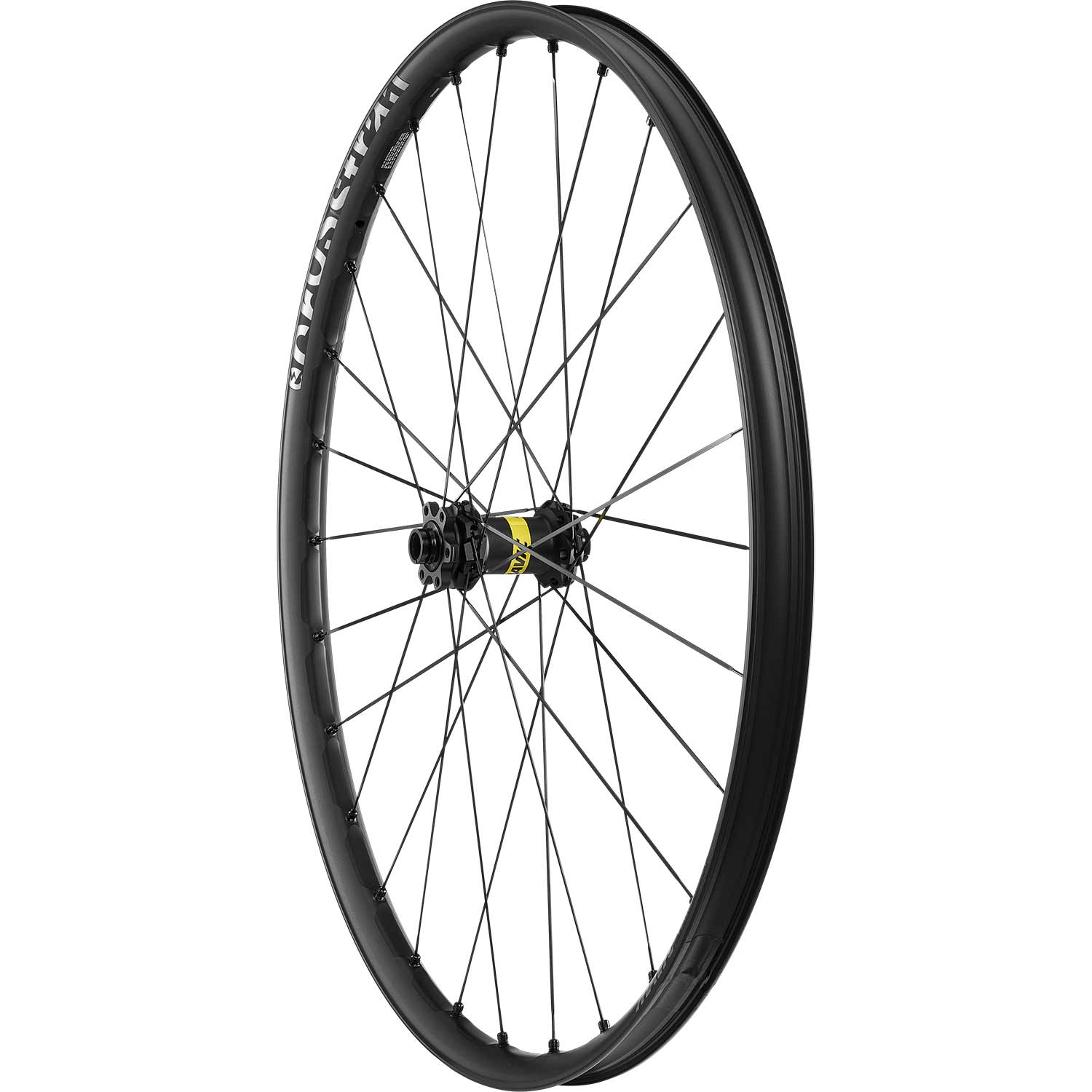

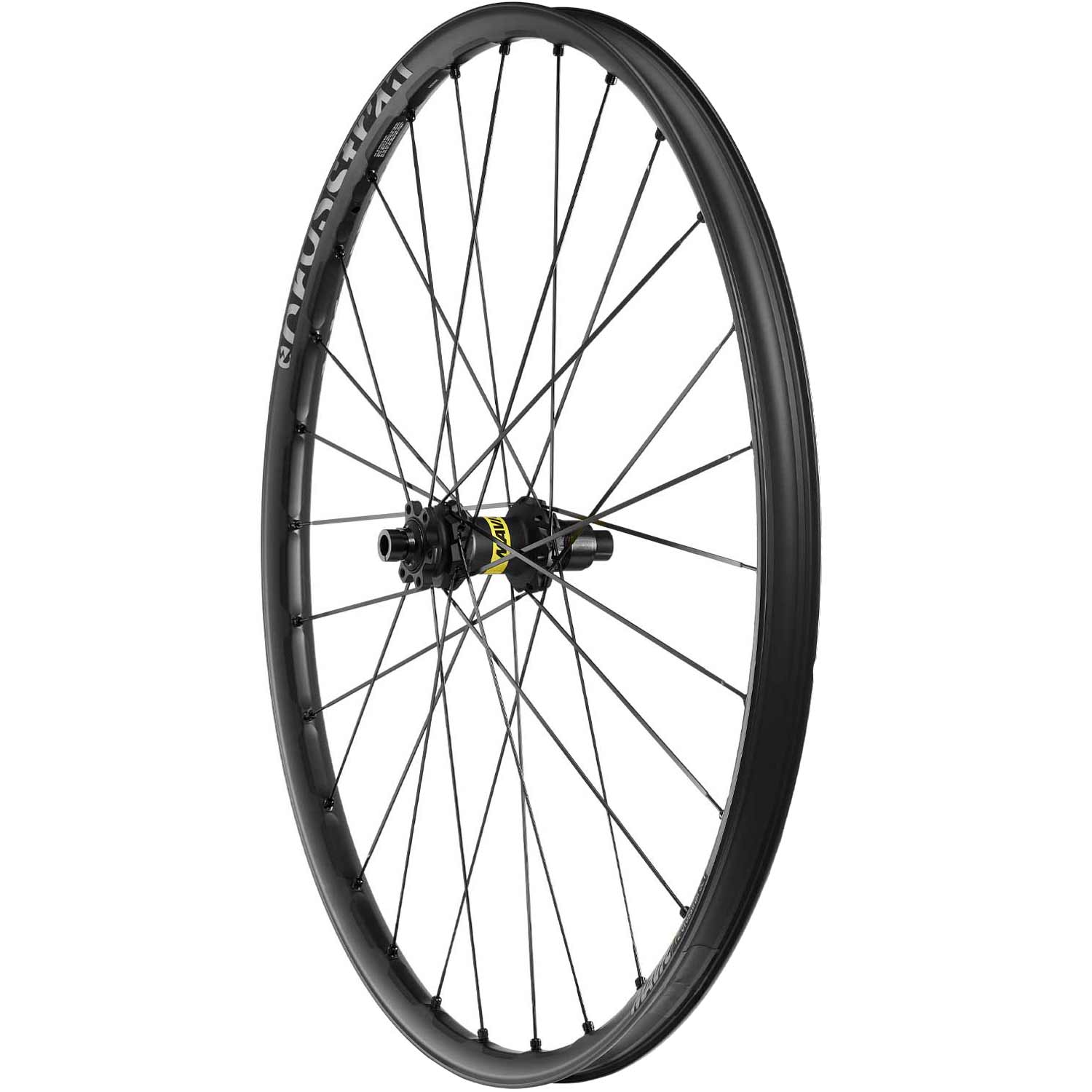

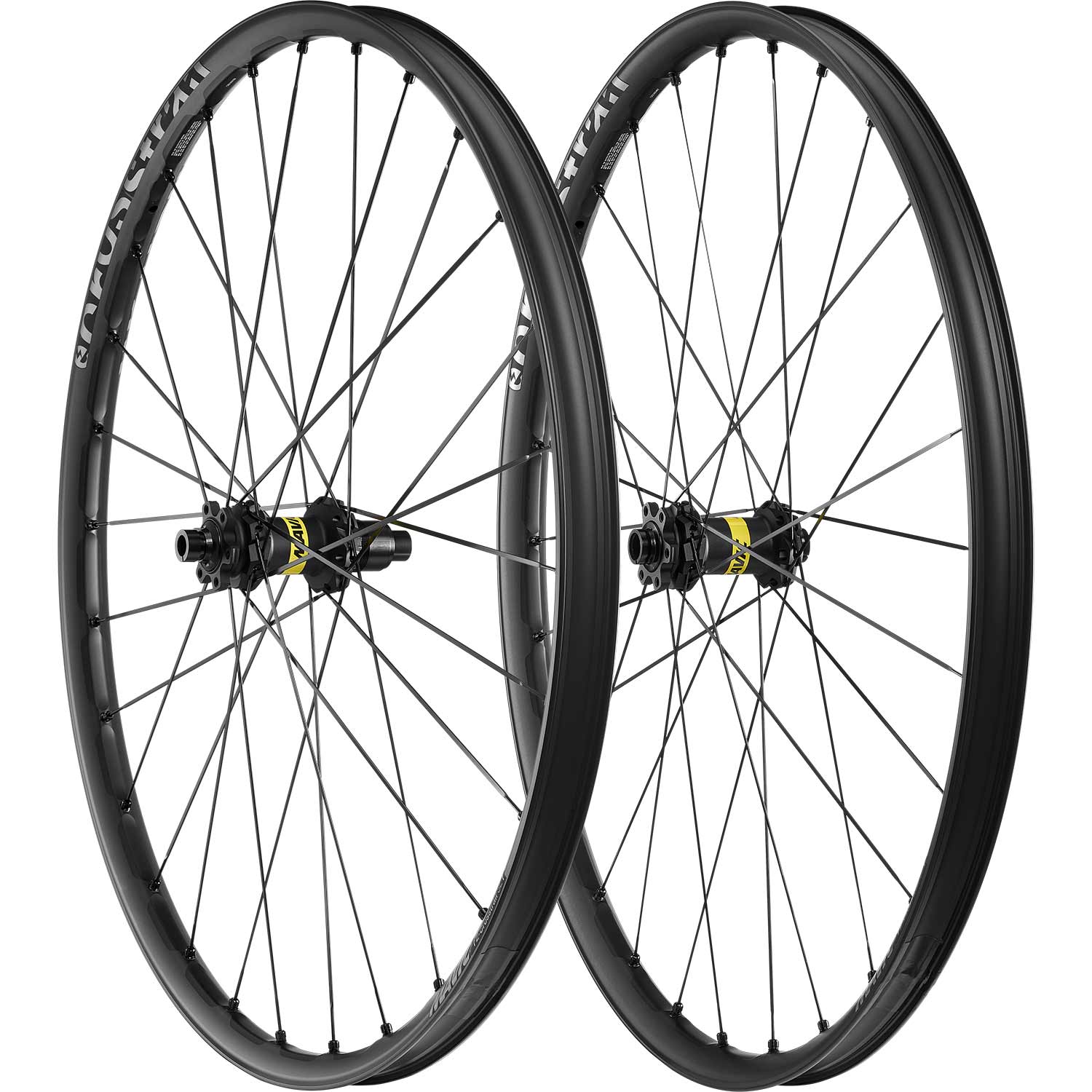

The e-Crosstrail SL is the ultimate e-bike wheel. Robust, agile and lightweight, it combines the best of Mavic's technologies, making it your best companion to tackle any trail.

Ultra Robust

• The 30mm aluminium rim and patented FORE and PFP technologies make the e-crosstrail sl an indestructible E-MTB wheel.

Improved reactivity

• With INFINITY hubs specially reinforced for e-bike use, power transfer is ultra-efficient and the wheel is even more responsive

Ultra Versatile

• The lightness of its rim and its spoking make e-crosstrail sl one of the most versatile e-bike wheels in its category

Weight

• Pair: 1843g
• Rear: 975g
• Front: 868g

Understanding the different Mavic freehub body acronyms:

• HG or M11 - Shimano HG Road 11/12x (other speeds with spacer)
• MS - Shimano Microspline
• XD - SRAM XD
• XD-R - SRAM XD-R
• ED11 - Campagnolo 9/12x
• N3W - Campagnolo 13x

  ---

ADDITIONAL INFORMATION

Maxtal Aluminium Alloy

Exclusive to Mavic. this specific aluminium alloy offers a higher strength to weight ratio than tradition 6106 alloy

ISM Light Rim Technology

Inter Spoke Milling (ISM) is an exclusive Mavic patented concept. It elminates all the excess material where it's not needed. Using a patented machining process, Mavic are able to vary the thickness of aluminium rims. In this way, the profile is lightened between each (thinner) spoke exactly where the mechanical stresses are lowest providing a 15% lighter rim without compromising on reliability.

Fore Tapeless Tubeless Technology

Stiffer and Stronger. Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed into it, leaving the upper rim bridge intact.

Instant Drive 360 technology

Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

UST tubeless technology

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

SUP Welding technology

Stronger and smoother at the joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish

Black Shield Treatment

This treatment doubles the rim's lifespan against stone impacts and scratches. Super strong double coated treatment with a matt finish.

Infinity Hub Design

An ultra reliable, high performance hub. Efficient power transfer thanks to the optimised non-contact spoke lacing and tension distribution. The length of the spokes are identical on the front and rear.

QRM Auto Bearing Preload Technology

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

Technical Specifications:

• Profile depth: 22mm
• Inner width: 30mm
• Front axle: 15x110mm
• Rear axle: 12x148mm
• Discipline: Downhill
• Spokes: Sstraight, extra-flat, constricted, antirot
• Rim Diameter: 27.5"
• Nipples: Brass Black
• Rim material: Maxtal
• Tyre compatibility: UST Tubeless Ready Use with Mavic Tubeless Tape
• Maximum weight: 150kg including bike
• Braking system: 6 Bolt
• Bearings: QRM automatic setting sealed cartridge
• ETRTO Size: 584x30TC
• Pair weight: 1843g
• Front weight: 868g
• Rear weight: 975g

What's in the Box?

• Wheelset
• 2 Multifunction adjustment wrench with the rear wheel
• UST valve not mounted on wheel
• 2 Replacement spokes for each wheel
• User guide

Intended Use

• Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
• Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
• ASTM category 4: enduro and trail riding
