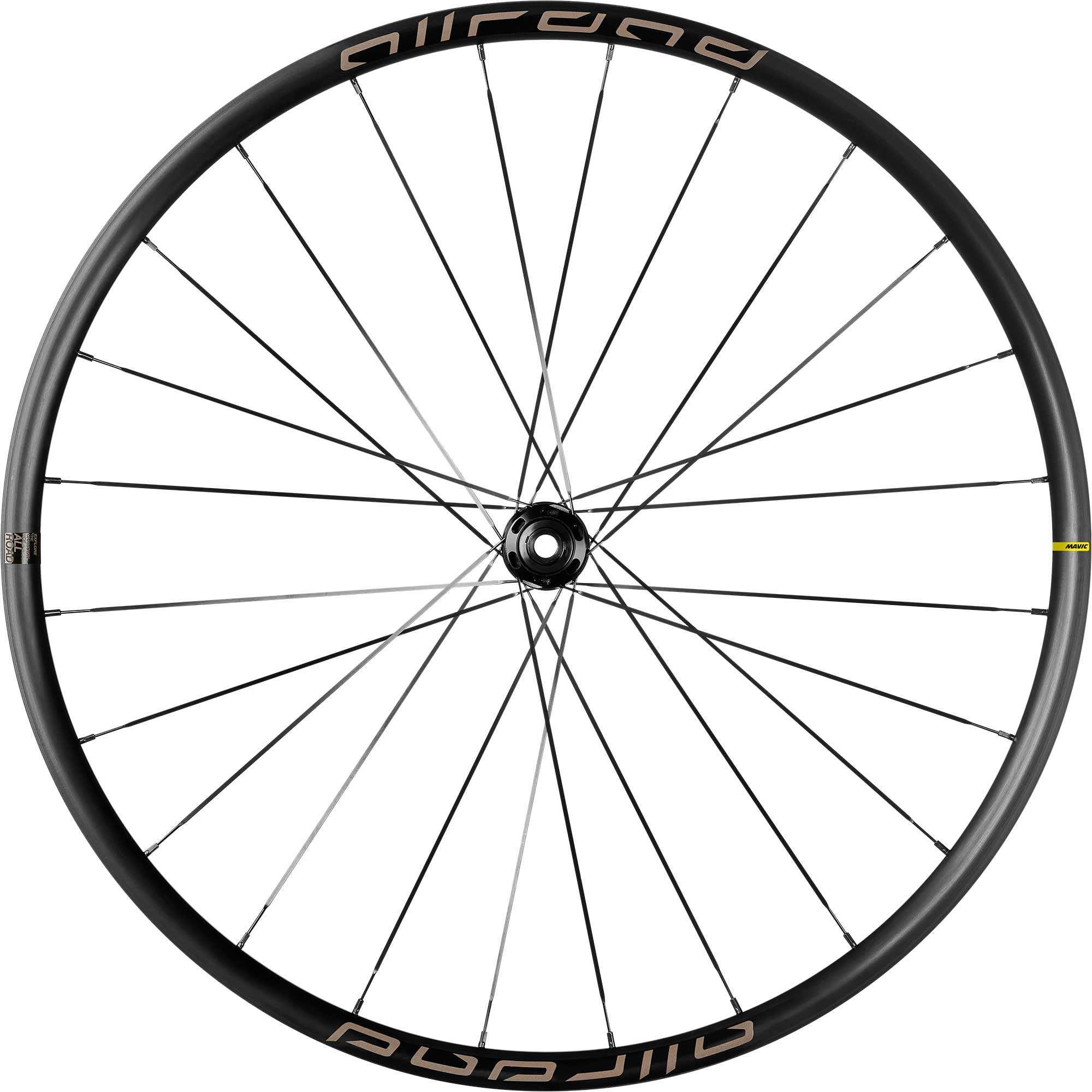

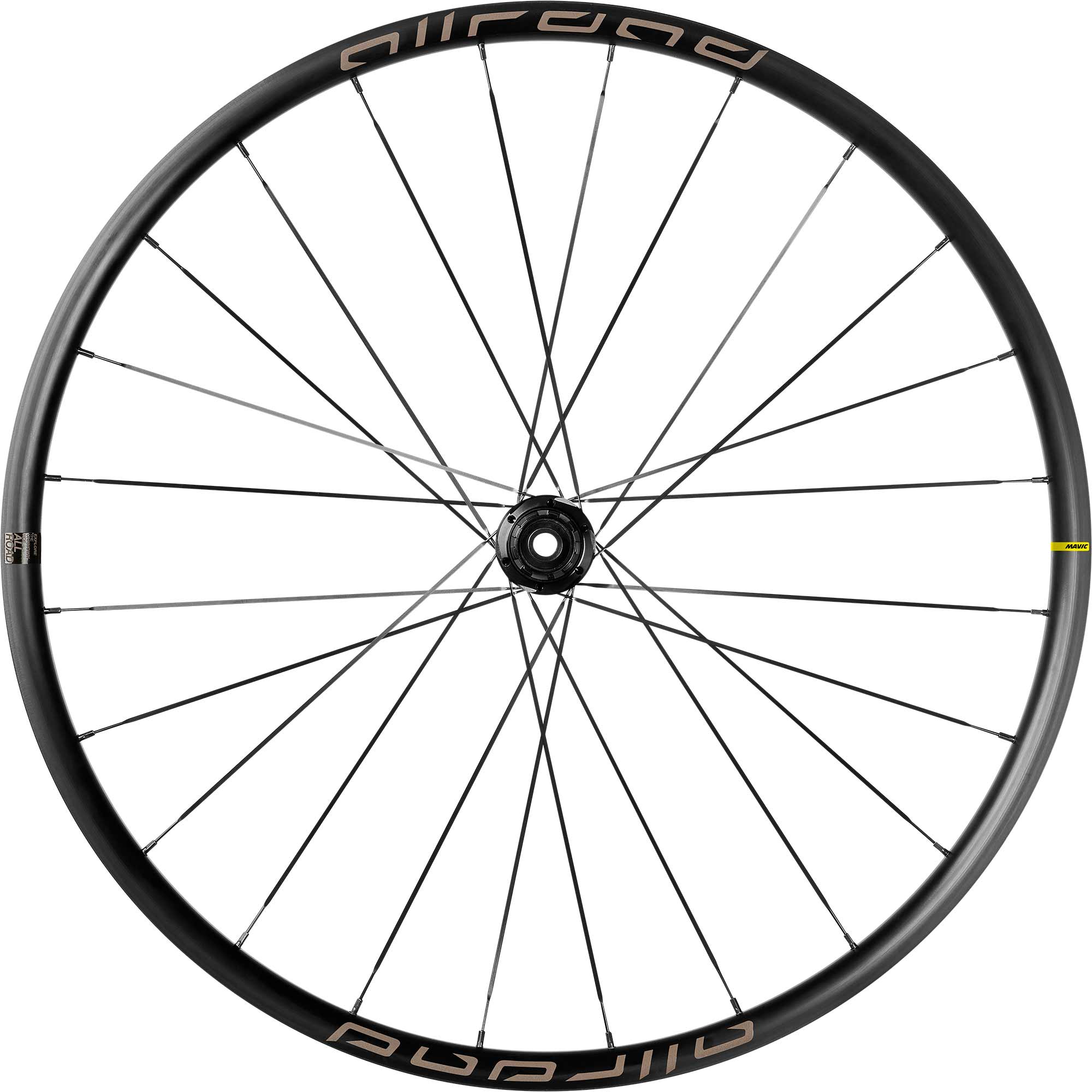

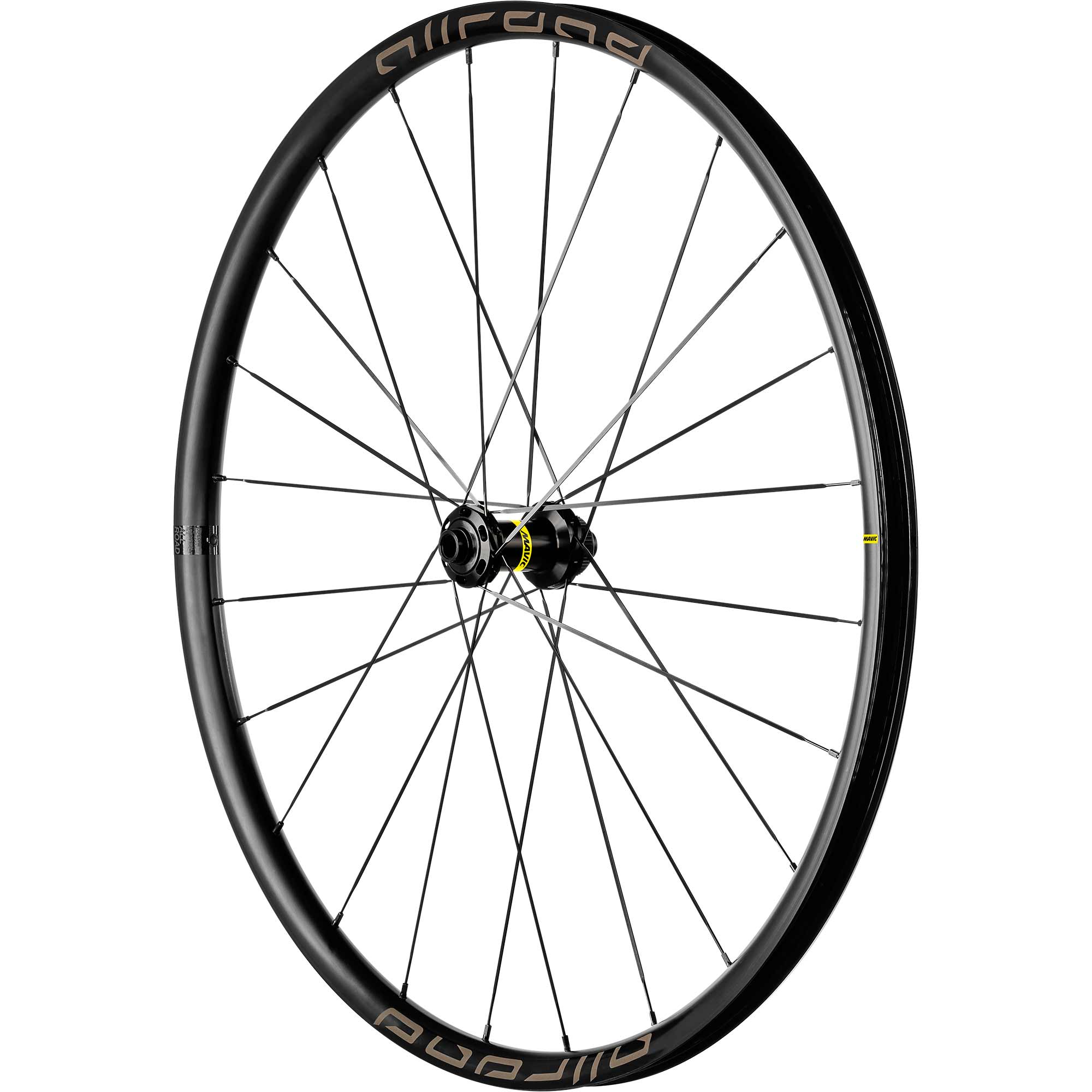

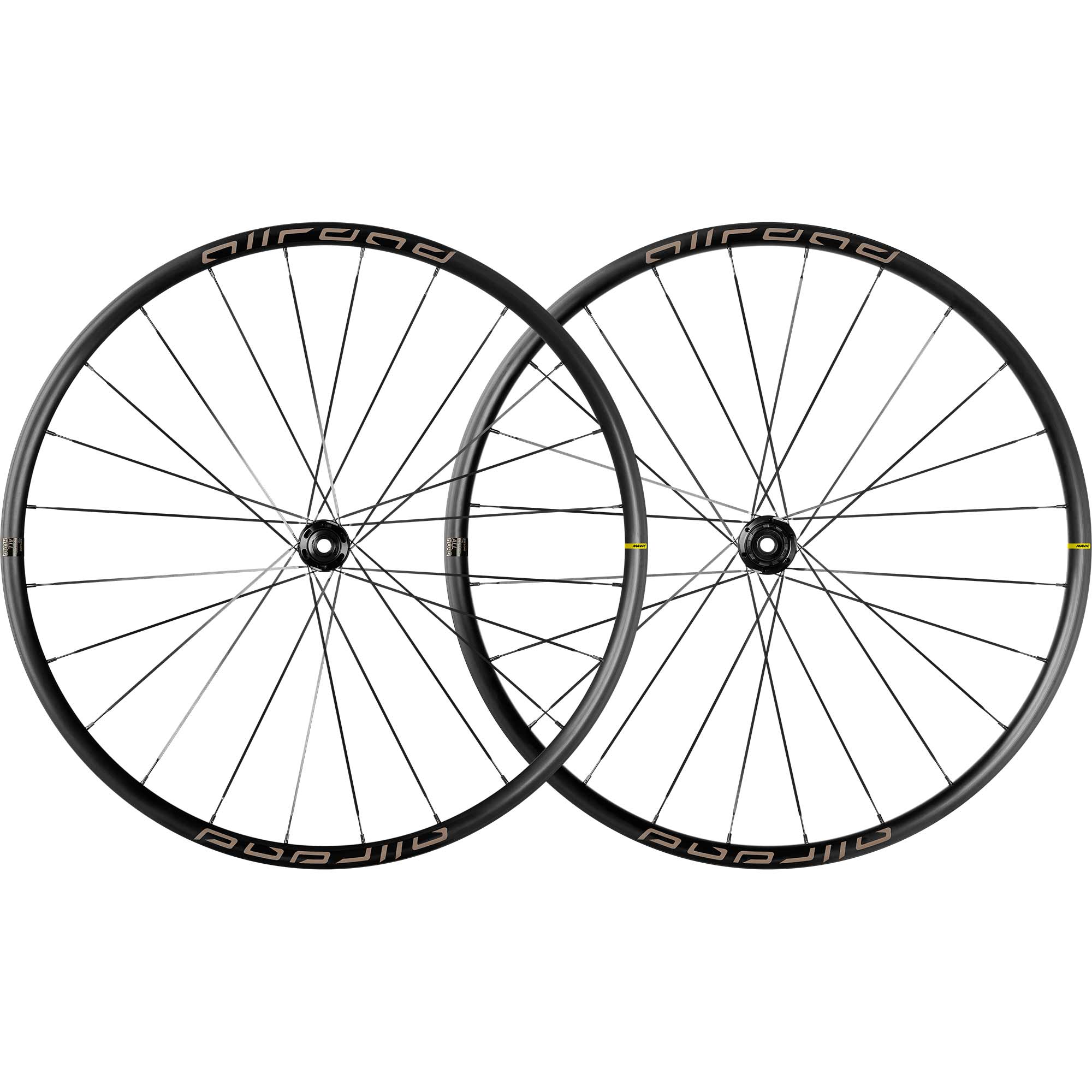

With a 25mm wide rim profile in a 650B diameter, this UST Road Tubeless wheel system is built for adventure on the roughest terrain, giving you the confidence you need to tackle rugged, adventurous paths with full control.

Purpose-built for riding rough roads, gravel or dirt

• 25mm wide rim takes tyres up to 64mm
• UST Road Tubeless technology improves comfort and rolling resistance, and reduces the risk of punctures
• 650B diameter keeps the wheel agile

Proven performance and reliability at an attainable cost

• Infinity hub platform optimizes spoke tension and wheel stability
• Instant Drive 360 freewheel engages quickly and automatic bearing preload keeps free spinning through time and abuse
• Straight-pull round spokes, which are stronger than J-bend spokes

Rolling efficiency and nimble ride quality

• Sleeved rim minimizes weight
• Consistent and stable spoke lacing
• Low-friction hub internals

Weight

• Pair: 1840g
• Rear: 980g
• Front: 860g

Understanding the different Mavic freehub body acronyms:

• HG or M11 - Shimano HG Road 11/12x (other speeds with spacer)
• MS - Shimano Microspline
• XD - SRAM XD
• XD-R - SRAM XD-R
• ED11 - Campagnolo 9/12x
• N3W - Campagnolo 13x

ADDITIONAL INFORMATION

Perfect for riding on rough roads, gravel or dirt, it gives you the smooth-riding performance of tubeless tyres and makes it easy to set them up without any hassles. Low rolling resistance and a reduced risk of punctures add up to a better overall riding experience, especially on rugged terrain.

The wheels are engineered for the unique demands of disc brakes, built up with 24 straight-pull spokes, which are stronger than J-bend spokes. So wherever the road goes, and however rough it gets, you're ready to keep things rolling.

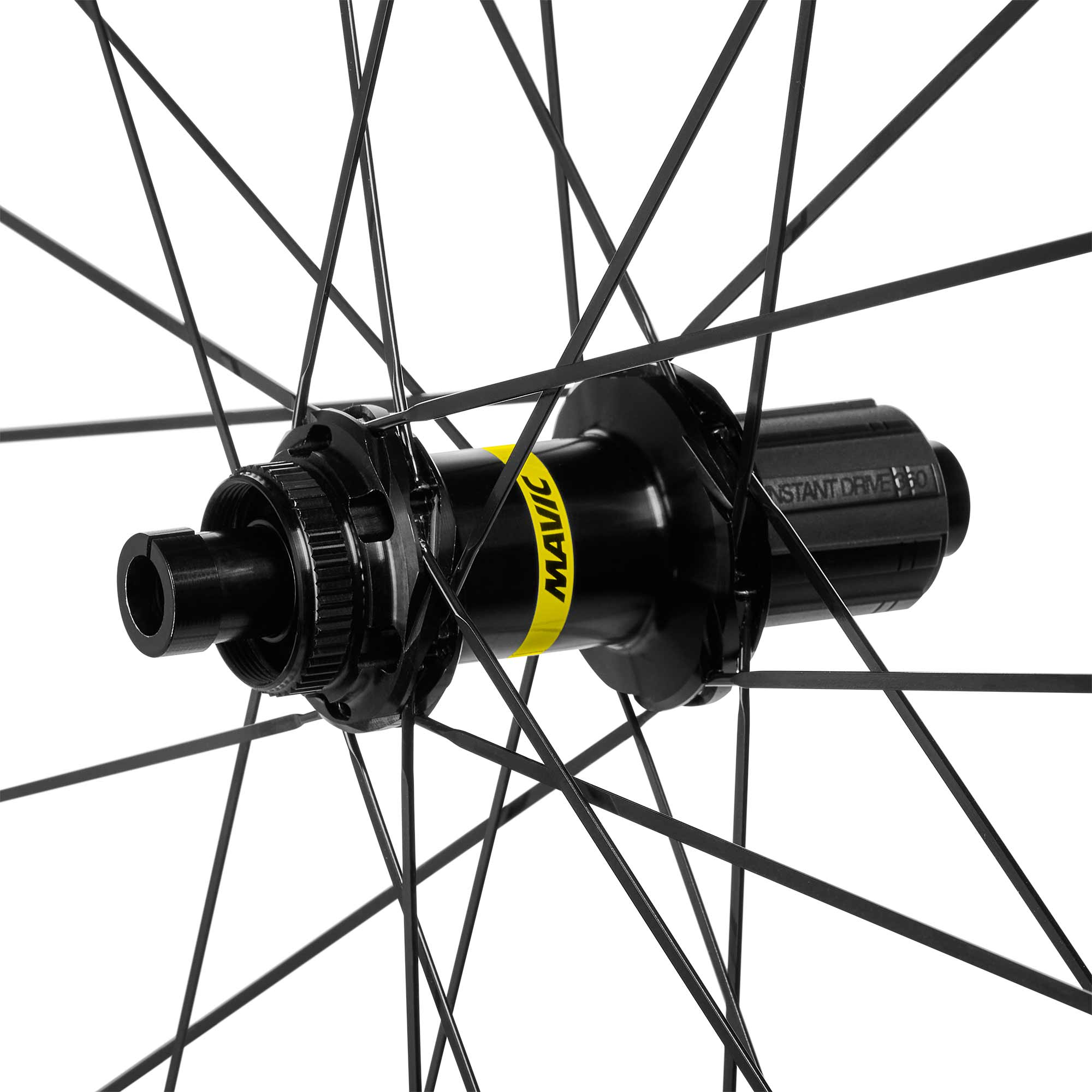

Instant Drive 360 technology

Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

UST tubeless technology

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

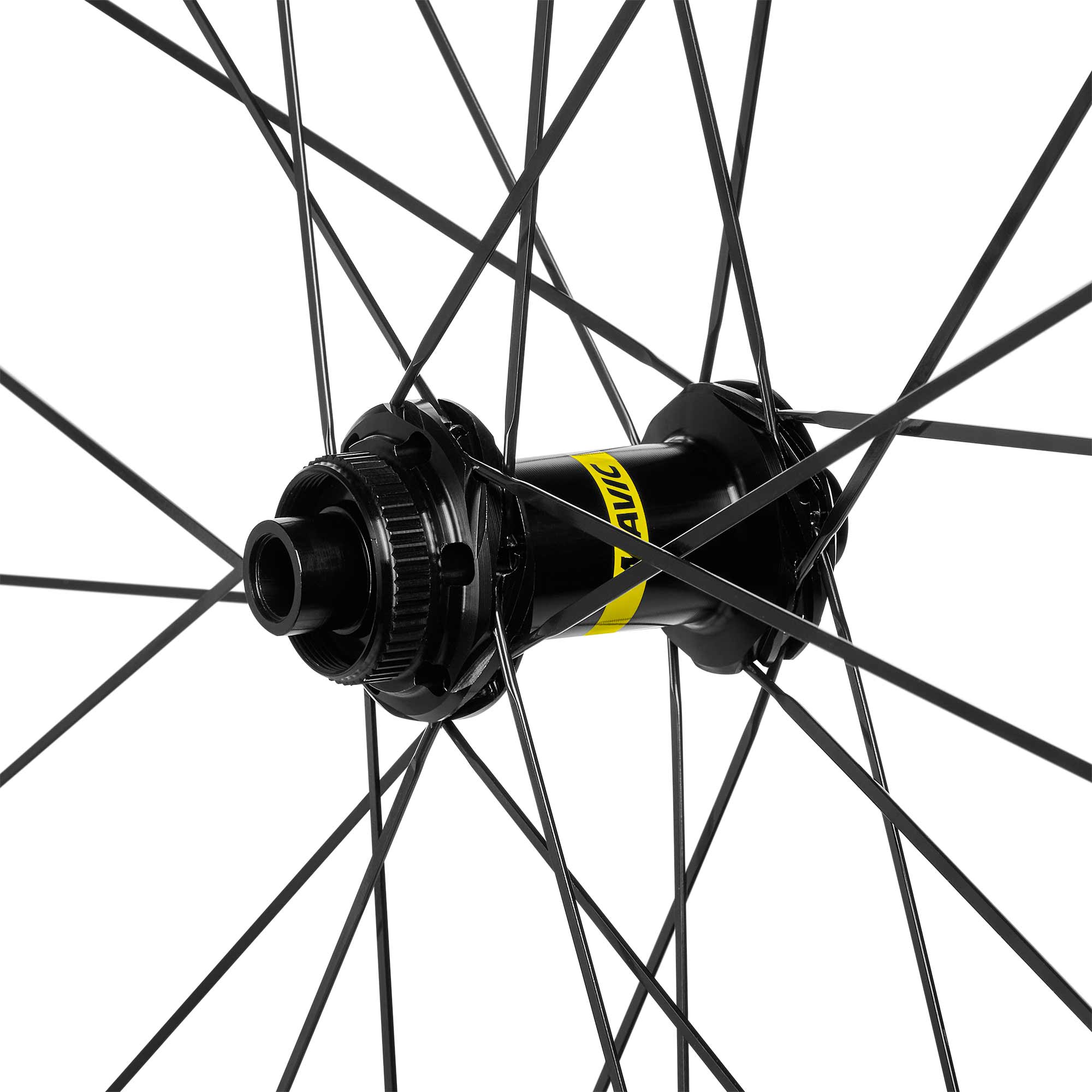

Infinity Hub Design

An ultra reliable, high performance hub. Efficient power transfer thanks to the optimised non-contact spoke lacing and tension distribution. The length of the spokes are identical on the front and rear. Maintenance is easy thanks to a tool free solution.

QRM Auto Bearing Preload Technology

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

Technical Specifications:

• Profile depth: 21mm
• Inner width: 25mm
• Front axle: 12x100mm
• Rear axle: 12x142mm
• Discipline: Gravel
• Spokes: Steel, Straight, flat
• Rim Diameter: 650B
• Nipples: Steel ABS Black
• Rim material: S6000 Aluminium
• Tyre compatibility: UST Tubeless Ready
• Maximum weight: 135kg including bike
• Braking system: Centre lock disc only
• Bearings: QRM automatic setting sealed cartridge
• ETRTO Size: 584x25TSS
• Weight: 1840g

What's in the box?

• Wheelset
• User guide
• UST Valve not mounted on the wheel
• Multifunction adjustment wrench

Intended Use

• Minimum tyre size: width 23mm - pressure max. 6.75Bar/97PSI
• Maximum tyre size: width 62mm - pressure max. 3.8Bar/55PSI
• ASTM category 2 : road and offroad with jumps less than 15cm
