• Home
• Chainring Bolt Pliers

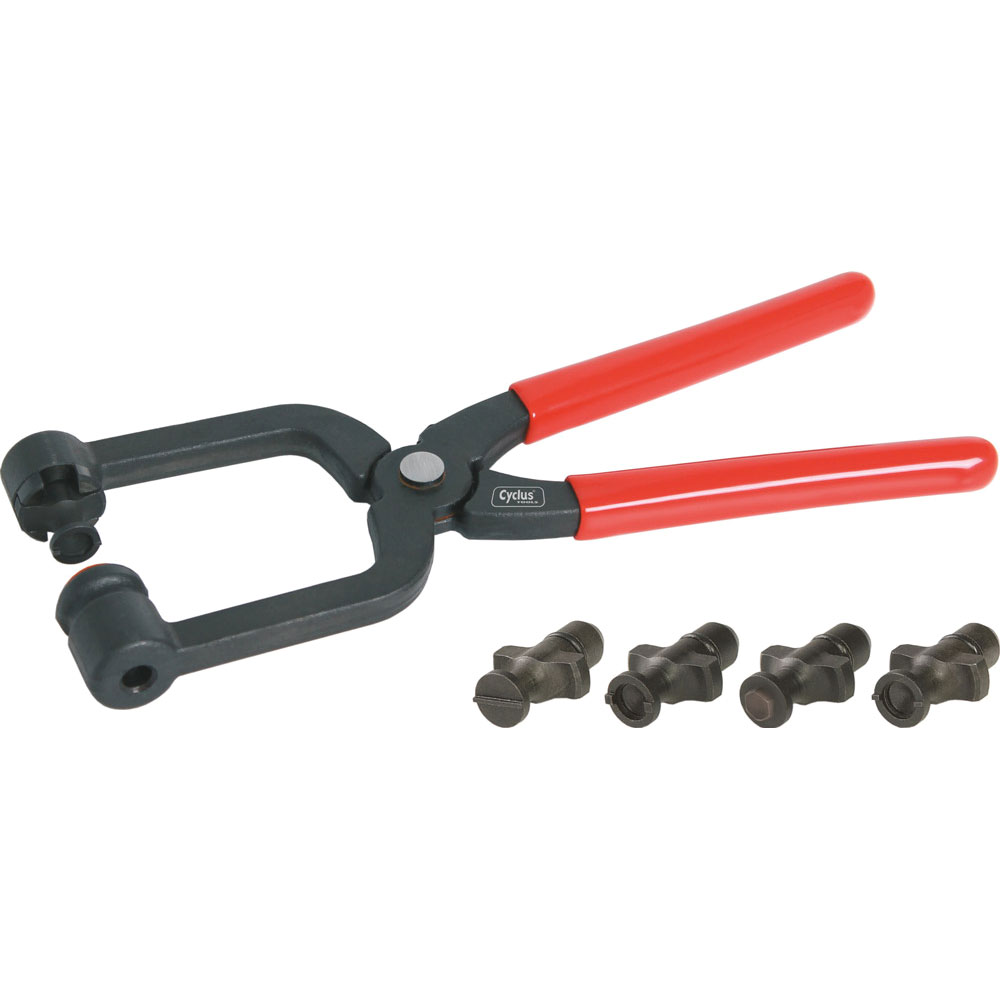

CYCLUS TOOLS Chainring'r complete set including 5 bits

• CYT5525
• Art Nr: 729996
• EAN Code: 4250968700566

The CYCLUS TOOLS Chainring'r mounting pliers allow safe work on the chainring and rear dropout bolts.

Included:

• Bit A: Constant 1.0 mm notch, separate part for chain ring bolt assembly pliers (Code: 720327 or CYT5527) For Campagnolo carbon cranks (Chorus / Record / Super Record).
• Bit B: Notch, 2.0 mm, separate part for chain ring bolt assembly pliers (Code: 720323 or CYT5528B). For Miche cranks (Team / Pista / Evo / Young).
• Bit C: Hexagon 5 mm, separate part for chain ring bolt assembly pliers (Code: 720324 or CYT5528C). For SRAM/Truvativ cranks (XX / X0/ X9 / X7 / X5 / S1400 / S1000) and FSA (K-Force Light / SL-K / Gossamer / Afterburner).
• Bit D: 2-notch 1.5mm, separate part for chain ring bolt assembly pliers (Code: 720325 or CYT5528D). For Shimano cranks (Dura Ace / Ultegra / 105 / XTR / XT / LX / Deore).
• Bit E: 2-notch 1mm, separate part for chain ring bolt assembly pliers (Code: 720326 or CYT5528E). For Campagnolo square taper, Campagnolo Pista, SRAM X-Four, Shimano Dura Ace Pista cranks.

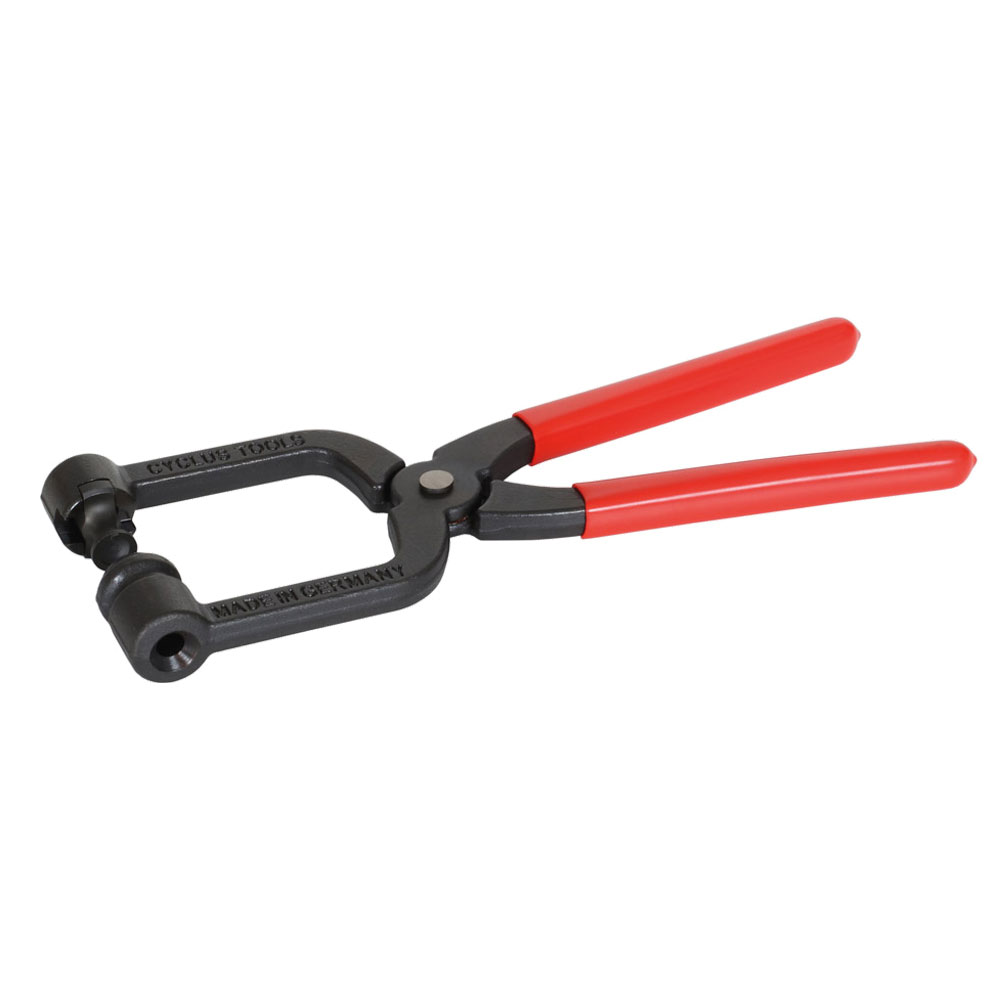

Chainring'r Chain Ring Bolt Pliers

• CYT5526
• Art Nr: 720327
• EAN Code: 4250968700269

Professional tool for quick and simple exchange of chainrings. The crank can stay assembled on the frame.

On one side there is a guide for the hexagon wrench (diameter 7mm), on the other side, there is a drive for the different bits, which depends on the crank bolt standard you wish to torque with.

Note: This tool is delivered with bit "D" for all Shimano chainrings, which have 2 notches of 1.5 mm thickness.

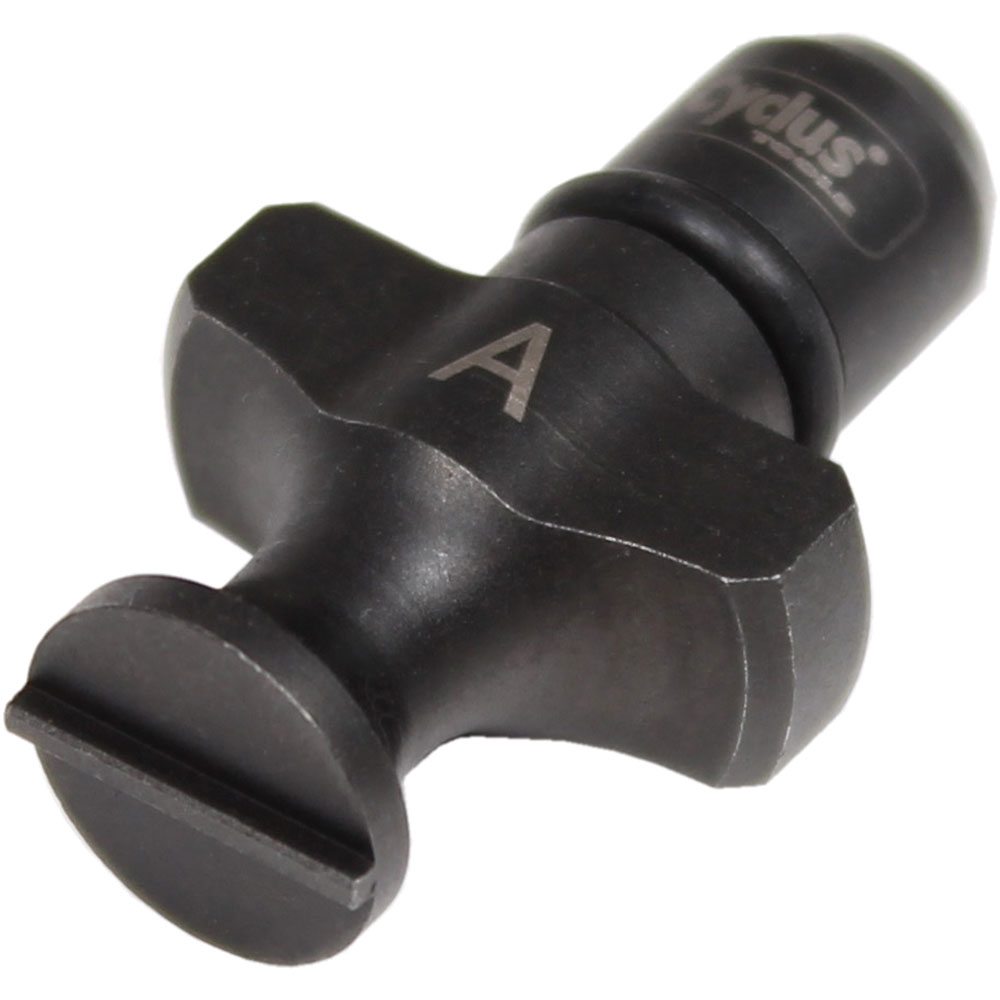

Bit A 1-Constant Notch 1mm

• CYT5527
• Art Nr: 720322
• EAN Code: 4250968700214

This bit can be used for Campagnolo carbon cranks (Chorus / Record / Super Record).

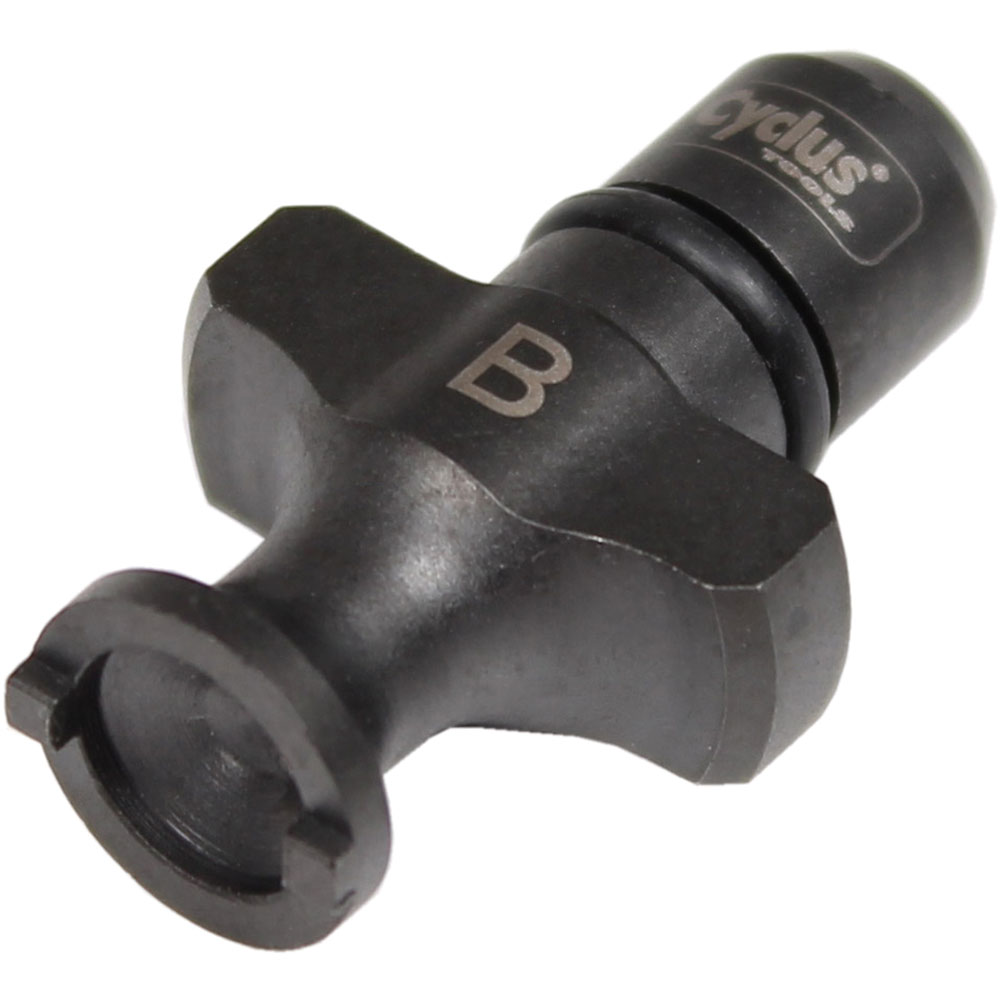

Bit B 2-Notch 2mm for Chainring'r

• CYT5528B
• Art Nr: 720323
• EAN Code: 4250968700221

This bit can be used for Miche cranks (Team / Pista / Evo / Young).

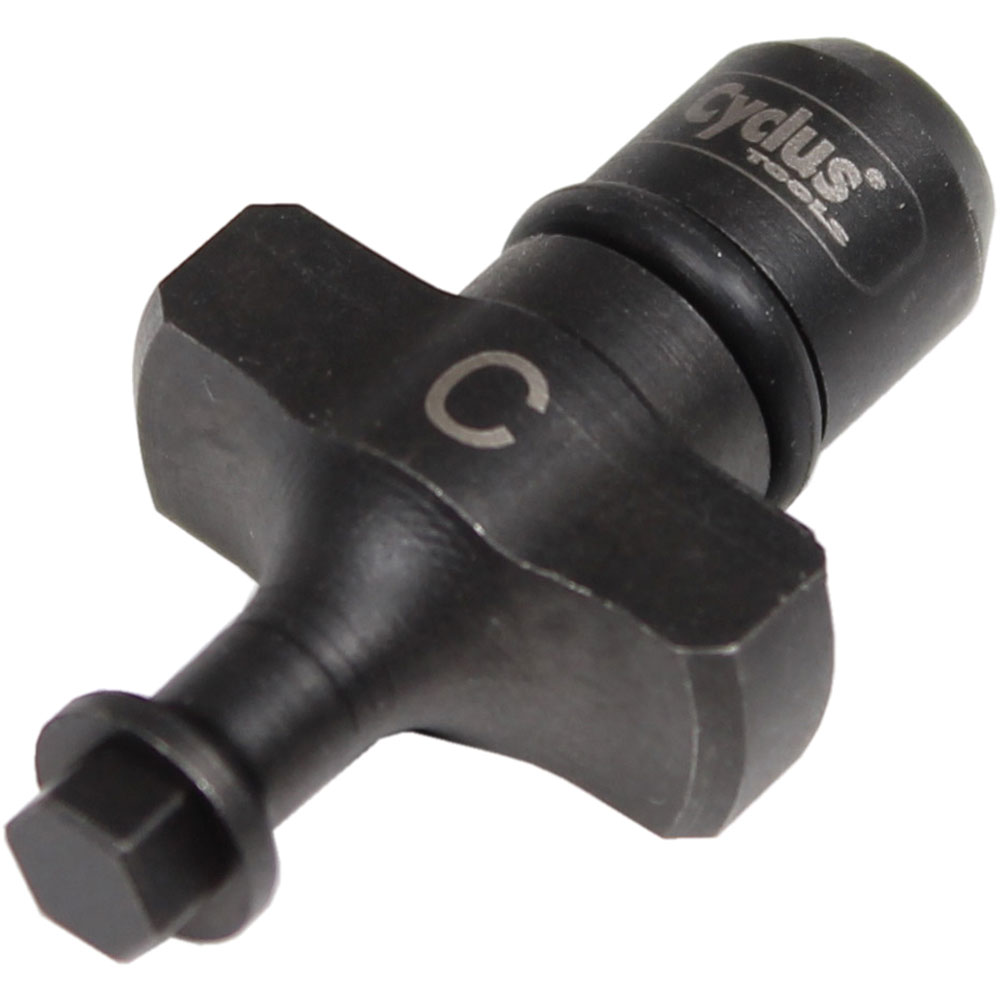

Bit C Hexagon 5mm for Chainring'r

• CYT5528C
• Art Nr: 720324
• EAN Code: 4250968700238

This bit can be used for SRAM/Truvativ cranks (XX / X0/ X9 / X7 / X5 / S1400 / S1000) and FSA (K-Force Light / SL-K / Gossamer / Afterburner).

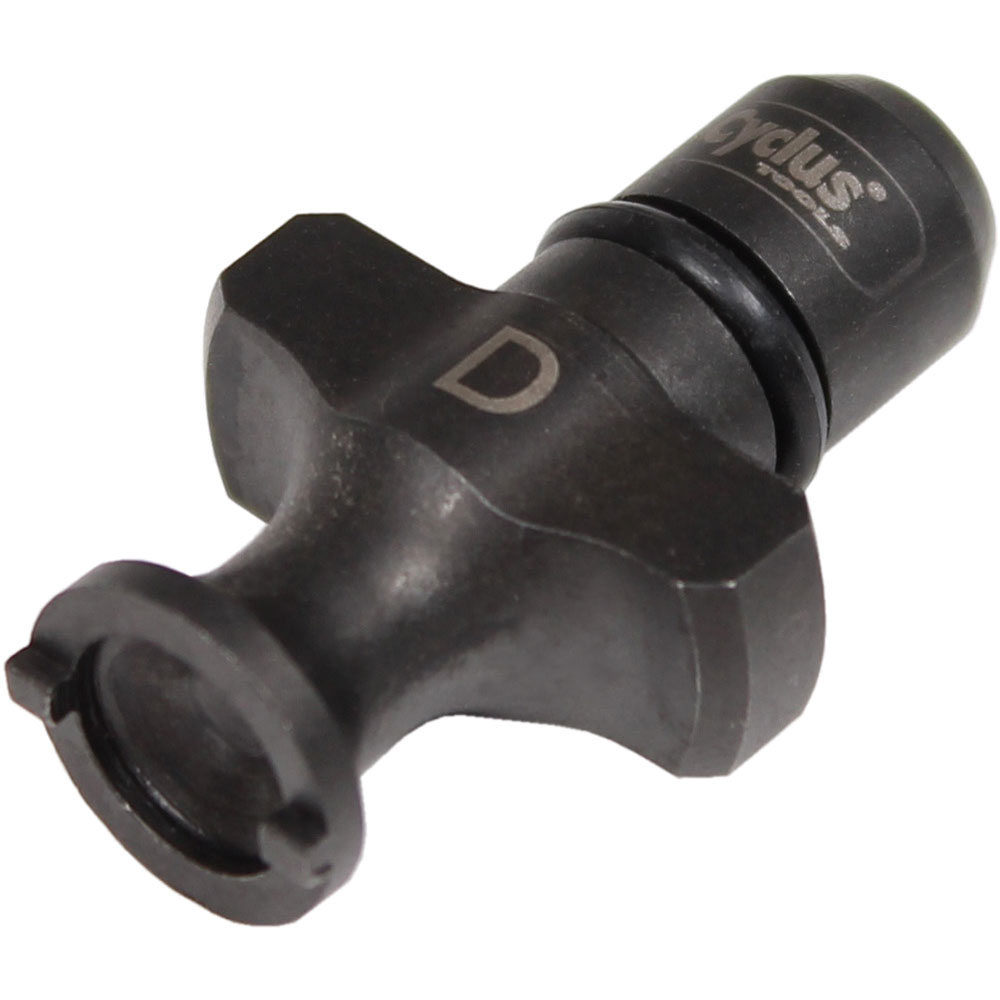

Bit D 2-Notch 1.5mm for Chainring'r

• CYT5528D
• Art Nr: 720325
• EAN Code: 4250968700245

This bit can be used for Shimano cranks (Dura Ace / Ultegra / 105 / XTR / XT / LX / Deore).

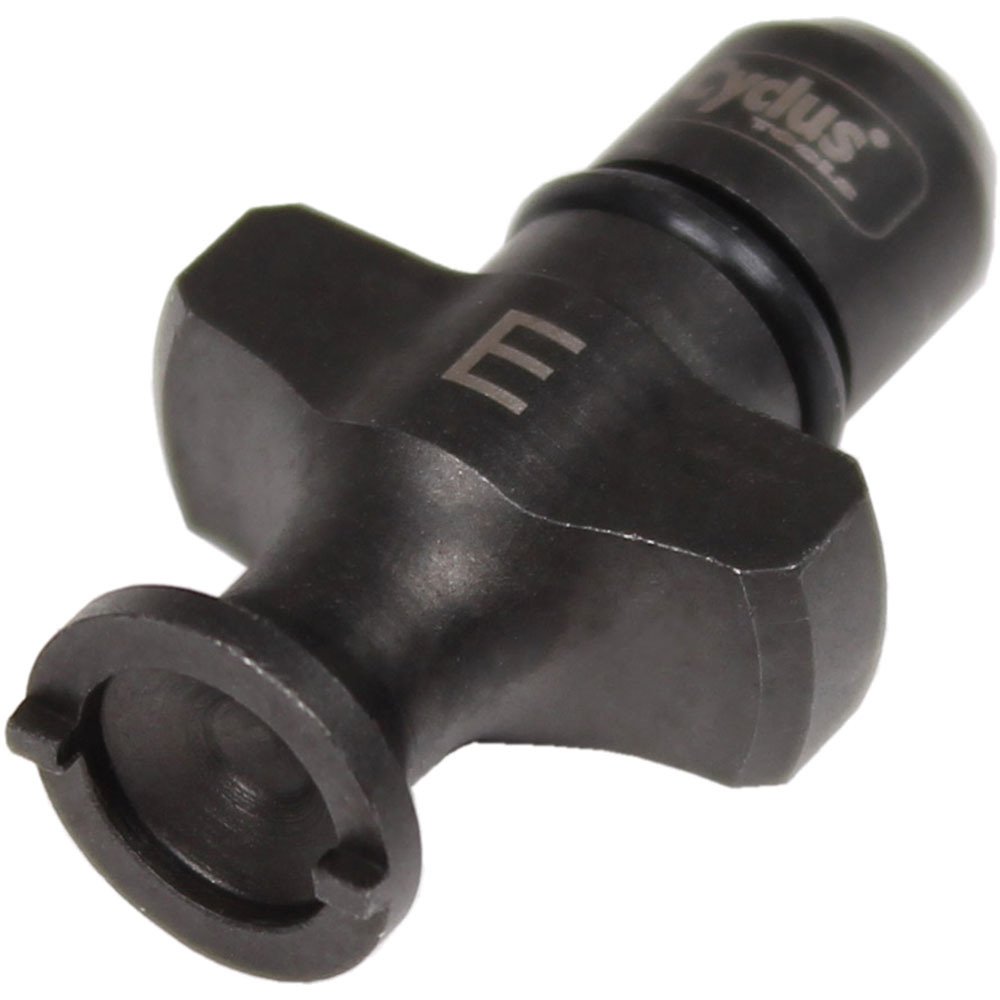

Bit E 2-Notch 1mm for Chainring'r

• CYT5528E
• Art Nr: 720326
• EAN Code: 4250968700252

This bit can be used for Campagnolo square taper, Campagnolo Pista, SRAM X-Four, Shimano Dura Ace Pista cranks.
